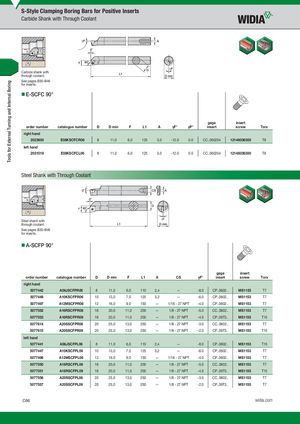

Carbide shank with through coolant. See pages B30–B46 for inserts.
- E-SCFC 90°
gage insert
| order number | catalogue number | D | D min | F | L1 | A | aF° | aP° | insert | screw | Torx | |||
| right hand | ||||||||||||||
| 2023600 | E08KSCFCR06 | 8 | 11,0 | 6,0 | 125 | 3,0 | -12.0 | 0.0 | CC..060204 | 12148036300 | T8 | |||
| left hand | ||||||||||||||
| 2031019 | E08KSCFCL06 | 8 | 11,0 | 6,0 | 125 | 3,0 | -12.0 | 0.0 | CC..060204 | 12148036300 | T8 |
Steel Shank with Through Coolant
Steel shank with through coolant. See pages B30–B46 for inserts.
- A-SCFP 90°
gage insert
order number catalogue number D D min F L1 A CS aF° insert screw Torx
| order number | catalogue number | D | D min | F | L1 | A | CS | �F° | gage insert | insert screw | Torx |
| right hand | |||||||||||
| 5077442 | A08JSCFPR06 | 8 | 11,0 | 6,0 | 110 | 2,4 | — | -8.0 | CP..0602.. | MS1153 | T7 |
| 5077449 | A10KSCFPR06 | 10 | 13,0 | 7,0 | 125 | 3,2 | — | -6.0 | CP..0602.. | MS1153 | T7 |
| 5077497 | A12MSCFPR06 | 12 | 16,0 | 9,0 | 150 | — | 1/16 - 27 NPT | -4.0 | CP..0602.. | MS1153 | T7 |
| 5077552 | A16RSCFPR06 | 16 | 20,0 | 11,0 | 200 | — | 1/8 - 27 NPT | -5.0 | CC..0602.. | MS1153 | T7 |
| 5077553 | A16RSCFPR09 | 16 | 20,0 | 11,0 | 200 | — | 1/8 - 27 NPT | -4.0 | CP..09T3.. | MS1155 | T15 |
| 5077614 | A20SSCFPR06 | 20 | 25,0 | 13,0 | 250 | — | 1/8 - 27 NPT | -3.0 | CC..0602.. | MS1153 | T7 |
| 5077615 | A20SSCFPR09 | 20 | 25,0 | 13,0 | 250 | — | 1/8 - 27 NPT | -2.0 | CP..09T3.. | MS1155 | T15 |
| left hand | |||||||||||
| 5077441 | A08JSCFPL06 | 8 | 11,0 | 6,0 | 110 | 2,4 | — | -8.0 | CP..0602.. | MS1153 | T15 |
| 5077447 | A10KSCFPL06 | 10 | 13,0 | 7,0 | 125 | 3,2 | — | -6.0 | CP..0602.. | MS1153 | T7 |
| 5077496 | A12MSCFPL06 | 12 | 16,0 | 9,0 | 150 | — | 1/16 - 27 NPT | -4.0 | CP..0602.. | MS1153 | T7 |
| 5077550 | A16RSCFPL06 | 16 | 20,0 | 11,0 | 200 | — | 1/8 - 27 NPT | -5.0 | CC..0602.. | MS1153 | T7 |
| 5077551 | A16RSCFPL09 | 16 | 20,0 | 11,0 | 200 | — | 1/8 - 27 NPT | -4.0 | CP..09T3.. | MS1155 | T15 |
| 5077556 | A20SSCFPL06 | 20 | 25,0 | 13,0 | 250 | — | 1/8 - 27 NPT | -3.0 | CC..0602.. | MS1153 | T7 |
| 5077557 | A20SSCFPL09 | 20 | 25,0 | 13,0 | 250 | — | 1/8 - 27 NPT | -2.0 | CP..09T3.. | MS1155 | T7 |
