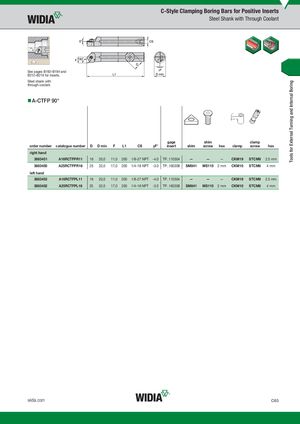

C-Style Clamping Boring Bars for Positive Inserts
See pages B192–B194 and B212–B216 for inserts. Steel shank with through coolant.
A-CTFP 90°
gage shim clamp
| order number | catalogue number | D | D min | F | L1 | CS aF° | insert shim | screw | hex | clamp | screw | hex | ||
| right hand | ||||||||||||||
| 3883451 | A16RCTFPR11 | 16 | 20,0 | 11,0 | 200 | 1/8-27 NPT | -4.0 TP..110304 | — | — | — | CKM19 | STCM9 | 2.5 mm | |
| 3883450 | A25RCTFPR16 | 25 | 32,0 | 17,0 | 200 | 1/4-18 NPT | -3.0 TP..160308 | SM841 | MS110 | 2 mm | CKM10 | STCM8 | 4 mm | |
| left hand | ||||||||||||||
| 3883453 | A16RCTFPL11 | 16 | 20,0 | 11,0 | 200 | 1/8-27 NPT | -4.0 TP..110304 | — | — | — | CKM19 | STCM9 | 2.5 mm | |
| 3883452 | A25RCTFPL16 | 25 | 32,0 | 17,0 | 200 | 1/4-18 NPT | -3.0 TP..160308 | SM841 | MS110 | 2 mm | CKM10 | STCM8 | 4 mm |
