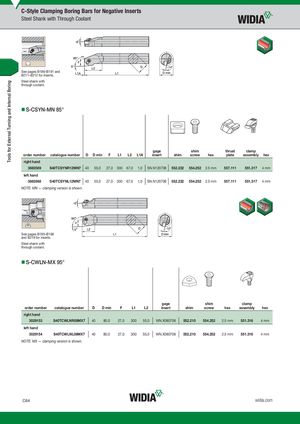

See pages B186–B191 and B211–B212 for inserts. Steel shank with through coolant.
- S-CSYN-MN 85°
gage shim thrust clamp
| order number | catalogue number | D | D min | F | L1 | L2 | L1A | insert | shim | screw | hex | plate | assembly | hex | ||
| right hand | ||||||||||||||||
| 3883569 | S40TCSYNR12MN7 | 40 | 55,0 | 27,0 | 300 | 67,0 | 1,0 | SN.N120708 | 552.232 | 554.252 | 2.5 mm | 557.111 | 551.317 | 4 mm | ||
| left hand | ||||||||||||||||
| 3883568 | S40TCSYNL12MN7 | 40 | 55,0 | 27,0 | 300 | 67,0 | 1,0 | SN.N120708 | 552.232 | 554.252 | 2.5 mm | 557.111 | 551.317 | 4 mm |
NOTE: MN — clamping version is shown.
See pages B195–B198 and B218 for inserts. Steel shank with through coolant.
- S-CWLN-MX 95°
gage shim clamp
| order number | catalogue number | D | D min | F | L1 | L2 | insert | shim | screw | hex | assembly | hex | ||
| right hand | ||||||||||||||
| 3029153 | S40TCWLNR08MX7 | 40 | 80,0 | 27,0 | 300 | 55,0 | WN.X080708 | 552.210 | 554.252 | 2.5 mm | 551.316 | 4 mm | ||
| left hand | ||||||||||||||
| 3029154 | S40TCWLNL08MX7 | 40 | 80,0 | 27,0 | 300 | 55,0 | WN.X080708 | 552.210 | 554.252 | 2.5 mm | 551.316 | 4 mm |
NOTE: MX — clamping version is shown.
