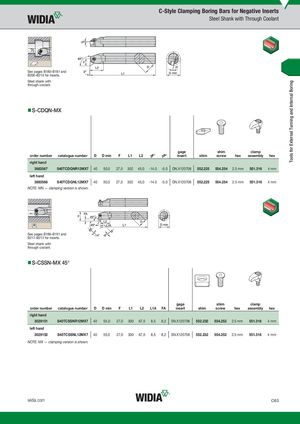

See pages B180–B181 and B206–B216 for inserts. Steel shank with through coolant.
- S-CDQN-MX
gage shim clamp
| order number | catalogue number | D | D min | F | L1 | L2 | aF° | aP° | insert | shim | screw | hex | assembly | hex | ||
| right hand | ||||||||||||||||
| 3883567 | S40TCDQNR12MX7 | 40 | 50,0 | 27,0 | 302 | 45,0 | -14.0 -5.0 | DN.X120708 | 552.225 | 554.254 | 2.5 mm | 551.316 | 4 mm | |||
| left hand | ||||||||||||||||
| 3883566 | S40TCDQNL12MX7 | 40 | 50,0 | 27,0 | 302 | 45,0 | -14.0 -5.0 | DN.X120708 | 552.225 | 554.254 | 2.5 mm | 551.316 | 4 mm |
NOTE: MN — clamping version is shown.
See pages B186–B191 and B211–B212 for inserts. Steel shank with through coolant.
- S-CSSN-MX 45°
gage shim clamp
| order number | catalogue number | D | D min | F | L1 | L2 | L1A | FA | insert | shim | screw | hex | assembly | hex | ||
| right hand | ||||||||||||||||
| 3029151 | S40TCSSNR12MX7 | 40 | 55,0 | 27,0 | 300 | 67,0 | 8,5 | 8,2 | SN.X120708 | 552.232 | 554.252 | 2.5 mm | 551.316 | 4 mm | ||
| left hand | ||||||||||||||||
| 3029152 | S40TCSSNL12MX7 | 40 | 55,0 | 27,0 | 300 | 67,0 | 8,5 | 8,2 | SN.X120708 | 552.232 | 554.252 | 2.5 mm | 551.316 | 4 mm |
NOTE: MX — clamping version is shown.
