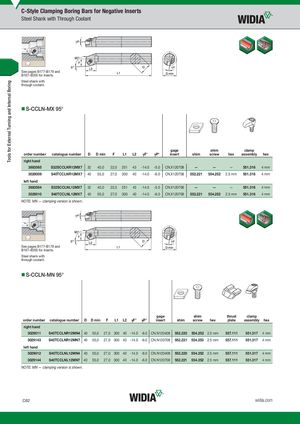

See pages B177–B179 and B197–B205 for inserts. Steel shank with through coolant.
- S-CCLN-MX 95°
gage shim clamp
| order number | catalogue number | D | D min | F | L1 | L2 | aF° | aP° | insert | shim | screw | hex | assembly | hex | ||
| right hand | ||||||||||||||||
| 3883565 | S32SCCLNR12MX7 | 32 | 40,0 | 22,0 | 251 | 43 | -14.0 -5.0 | CN.X120708 | — | — | — | 551.316 | 4 mm | |||
| 3029009 | S40TCCLNR12MX7 | 40 | 55,0 | 27,0 | 300 | 40 | -14.0 -6.0 CN.X120708 | 552.221 | 554.252 | 2.5 mm | 551.316 | 4 mm | ||||
| left hand | ||||||||||||||||
| 3883564 | S32SCCLNL12MX7 | 32 | 40,0 | 22,0 | 251 | 43 | -14.0 -5.0 | CN.X120708 | — | — | — | 551.316 | 4 mm | |||
| 3029010 | S40TCCLNL12MX7 | 40 | 55,0 | 27,0 | 300 | 40 | -14.0 -6.0 CN.X120708 | 552.221 | 554.252 | 2.5 mm | 551.316 | 4 mm |
NOTE: MN — clamping version is shown.
See pages B177–B179 and B197–B205 for inserts. Steel shank with through coolant.
- S-CCLN-MN 95°
gage shim thrust clamp
| order number | catalogue number | D | D min | F | L1 L2 | insert aP° aF° shim | screw | hex | plate | assembly | hex |
| right hand | |||||||||||
| 3029011 | S40TCCLNR12MN4 | 40 | 55,0 | 27,0 300 | 40 -14.0 -6.0 CN.N120408 | 552.220 | 554.252 | 2.5 mm | 557.111 | 551.317 | 4 mm |
| 3029143 | S40TCCLNR12MN7 | 40 | 55,0 | 27,0 300 | 40 -14.0 -6.0 CN.N120708 | 552.221 | 554.253 | 2.5 mm | 557.111 | 551.317 | 4 mm |
| left hand | |||||||||||
| 3029012 | S40TCCLNL12MN4 | 40 | 55,0 | 27,0 300 | 40 -14.0 -6.0 CN.N120408 | 552.220 | 554.252 | 2.5 mm | 557.111 | 551.317 | 4 mm |
| 3029144 | S40TCCLNL12MN7 | 40 | 55,0 | 27,0 300 | 40 -14.0 -6.0 CN.N120708 | 552.221 | 554.252 | 2.5 mm | 557.111 | 551.317 | 4 mm |
NOTE: MN — clamping version is shown.
