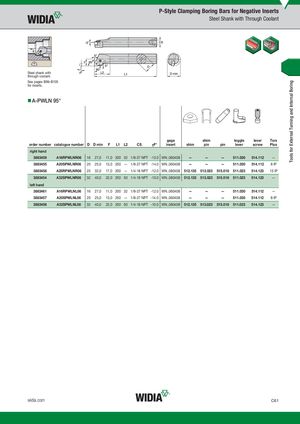

P-Style Clamping Boring Bars for Negative Inserts
Steel shank with through coolant. See pages B99–B105 for inserts.
A-PWLN 95°
| order number | catalogue number | D D min | F | L1 | L2 | CS | �F° | gage insert | shim | shim pin | pin | toggle lever | lever screw | Torx Plus |
| right hand | ||||||||||||||
| 3883459 | A16RPWLNR06 | 16 27,0 | 11,0 | 200 | 32 | 1/8-27 NPT | -12.0 | WN..060408 | — | — | — | 511.030 | 514.112 | — |
| 3883455 | A20SPWLNR06 | 20 25,0 | 13,0 | 250 | — | 1/8-27 NPT | -14.0 | WN..060408 | — | — | — | 511.030 | 514.112 | 8 IP |
| 3883458 | A25RPWLNR08 | 25 32,0 | 17,0 | 200 | — | 1/4-18 NPT | -12.0 | WN..080408 | 512.135 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3883454 | A32SPWLNR08 | 32 40,0 | 22,0 | 250 | 50 | 1/4-18 NPT | -10.0 | WN..080408 | 512.135 | 513.023 | 515.018 | 511.023 | 514.123 | — |
| left hand | ||||||||||||||
| 3883461 | A16RPWLNL06 | 16 27,0 | 11,0 | 200 | 32 | 1/8-27 NPT | -12.0 | WN..060408 | — | — | — | 511.030 | 514.112 | — |
| 3883457 | A20SPWLNL06 | 20 25,0 | 13,0 | 250 | — | 1/8-27 NPT | -14.0 | WN..060408 | — | — | — | 511.030 | 514.112 | 8 IP |
| 3883456 | A32SPWLNL08 | 32 40,0 | 22,0 | 250 | 50 | 1/4-18 NPT | -10.0 | WN..080408 | 512.135 | 513.023 | 515.018 | 511.023 | 514.123 | — |
