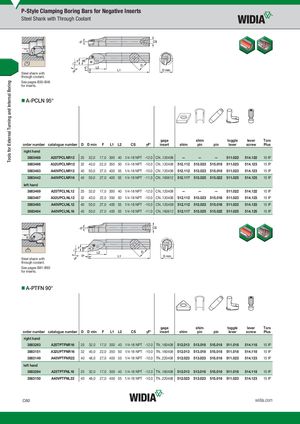

P-Style Clamping Boring Bars for Negative Inserts
Steel shank with through coolant. See pages B30–B46 for inserts.
- A-PCLN 95°
gage shim toggle lever Torx
| order number catalogue number | D | D min | F | insert aF° CS L2 L1 | shim | pin | pin | lever | screw | Plus | |||
| right hand | |||||||||||||
| 3883468 | A25TPCLNR12 | 25 | 32,0 | 17,0 300 40 1/4-18 NPT -12.0 CN..120408 | — | — | — | 511.022 | 514.122 | 10 IP | |||
| 3883466 | A32UPCLNR12 | 32 | 40,0 | 22,0 350 50 1/4-18 NPT -10.0 CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP | |||
| 3883463 | A40VPCLNR12 | 40 | 50,0 | 27,0 400 55 1/4-18 NPT -10.0 CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP | |||
| 3883442 | A40VPCLNR16 | 40 | 50,0 | 27,0 400 55 1/4-18 NPT -11.0 CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP | |||
| left hand | |||||||||||||
| 3883469 | A25TPCLNL12 | 25 | 32,0 | 17,0 300 40 1/4-18 NPT -12.0 CN..120408 | — | — | — | 511.022 | 514.122 | 10 IP | |||
| 3883467 | A32UPCLNL12 | 32 | 40,0 | 22,0 350 50 1/4-18 NPT -10.0 CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP | |||
| 3883465 | A40VPCLNL12 | 40 | 50,0 | 27,0 400 55 1/4-18 NPT -10.0 CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP | |||
| 3883464 | A40VPCLNL16 | 40 | 50,0 | 27,0 400 55 1/4-18 NPT -11.0 CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
Steel shank with through coolant. See pages B81–B93 for inserts.
- A-PTFN 90°
gage shim toggle lever Torx
| order number catalogue number | D | D min | F | insert aF° CS L2 L1 shim | pin | pin | lever | screw | Plus | |
| right hand | ||||||||||
| 3883263 | A25TPTFNR16 | 25 | 32,0 | 17,0 300 40 1/4-18 NPT -12.0 TN..160408 | 512.013 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3883151 | A32UPTFNR16 | 32 | 40,0 | 22,0 350 50 1/4-18 NPT -10.0 TN..160408 | 512.013 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3883149 | A40VPTFNR22 | 40 | 48,0 | 27,0 400 55 1/4-18 NPT -10.0 TN..220408 | 512.023 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| left hand | ||||||||||
| 3883264 | A25TPTFNL16 | 25 | 32,0 | 17,0 300 40 1/4-18 NPT -12.0 TN..160408 | 512.013 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3883150 | A40VPTFNL22 | 40 | 48,0 | 27,0 400 55 1/4-18 NPT -10.0 TN..220408 | 512.023 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
