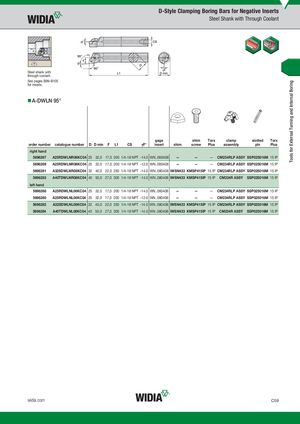

Steel shank with through coolant. See pages B99–B105 for inserts.
A-DWLN 95°
| order number | catalogue number | DDmin | F L1 | CS | �F° | gage insert | shim | shim screw | Torx Plus | clamp assembly | slotted pin | Torx Plus |
| right hand | ||||||||||||
| 5696267 | A25RDWLNR06KC04 | 25 32,0 | 17,0 200 | 1/4-18 NPT | -14.0 | WN..060408 | — | — | — | CM234RLP ASSY | SSP025016M | 15 IP |
| 5696269 | A25RDWLNR08KC04 | 25 32,0 | 17,0 200 | 1/4-18 NPT | -12.0 | WN..080408 | — | — | — | CM234RLP ASSY | SSP025016M | 15 IP |
| 5696281 | A32SDWLNR08KC04 | 32 40,0 | 22,0 250 | 1/4-18 NPT | -14.0 | WN..080408 | IWSN433 | KMSP415IP | 15 IP | CM234RLP ASSY | SSP025016M | 15 IP |
| 5696283 | A40TDWLNR08KC04 | 40 50,0 | 27,0 300 | 1/4-18 NPT | -14.0 | WN..080408 | IWSN433 | KMSP415IP | 15 IP | CM234R ASSY | SSP025016M | 15 IP |
| left hand | ||||||||||||
| 5696268 | A25RDWLNL06KC04 | 25 32,0 | 17,0 200 | 1/4-18 NPT | -14.0 | WN..060408 | — | — | — | CM234RLP ASSY | SSP025016M | 15 IP |
| 5696280 | A25RDWLNL08KC04 | 25 32,0 | 17,0 200 | 1/4-18 NPT | -12.0 | WN..080408 | — | — | — | CM234RLP ASSY | SSP025016M | 15 IP |
| 5696282 | A32SDWLNL08KC04 | 32 40,0 | 22,0 250 | 1/4-18 NPT | -14.0 | WN..080408 | IWSN433 | KMSP415IP | 15 IP | CM234RLP ASSY | SSP025016M | 15 IP |
| 5696284 | A40TDWLNL08KC04 | 40 50,0 | 27,0 300 | 1/4-18 NPT | -14.0 | WN..080408 | IWSN433 | KMSP415IP | 15 IP | CM234R ASSY | SSP025016M | 15 IP |
