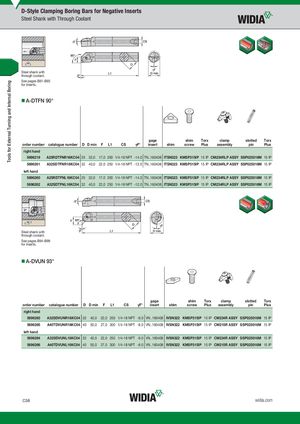

Tools for External Turning and Internal Boring D-Style Clamping Boring Bars for Negative Inserts Steel Shank with Through Coolant Steel shank with through coolant. See pages B81–B93 for inserts. „A-DTFN 90° gage shim Torx clamp slotted Torx order number catalogue number D D min F L1 CS aF° insert shim screw Plus assembly pin Plus right hand 5696219 A25RDTFNR16KC04 25 32,0 17,0 200 1/4-18 NPT -14.0 TN..160408 ITSN323 KMSP315IP 15 IP CM234RLP ASSY SSP025016M 15 IP 5696261 A32SDTFNR16KC04 32 40,0 22,0 250 1/4-18 NPT -12.0 TN..160408 ITSN323 KMSP315IP 15 IP CM234RLP ASSY SSP025016M 15 IP left hand 5696260 A25RDTFNL16KC04 25 32,0 17,0 200 1/4-18 NPT -14.0 TN..160408 ITSN323 KMSP315IP 15 IP CM234RLP ASSY SSP025016M 15 IP 5696262 A32SDTFNL16KC04 32 40,0 22,0 250 1/4-18 NPT -12.0 TN..160408 ITSN323 KMSP315IP 15 IP CM234RLP ASSY SSP025016M 15 IP Steel shank with through coolant. See pages B94–B99 for inserts. „A-DVUN 93° gage shim Torx clamp slotted Torx order number catalogue number D D min F L1 CS aF° insert shim screw Plus assembly pin Plus right hand 5696263 A32SDVUNR16KC04 32 40,0 22,0 250 1/4-18 NPT -9.0 VN..160408 IVSN322 KMSP315IP 15 IP CM234R ASSY SSP025016M 15 IP 5696265 A40TDVUNR16KC04 40 50,0 27,0 300 1/4-18 NPT -8.0 VN..160408 IVSN322 KMSP315IP 15 IP CM215R ASSY SSP025016M 15 IP left hand 5696264 A32SDVUNL16KC04 32 40,0 22,0 250 1/4-18 NPT -9.0 VN..160408 IVSN322 KMSP315IP 15 IP CM234R ASSY SSP025016M 15 IP 5696266 A40TDVUNL16KC04 40 50,0 27,0 300 1/4-18 NPT -8.0 VN..160408 IVSN322 KMSP315IP 15 IP CM215R ASSY SSP025016M 15 IP C58 widia.com
