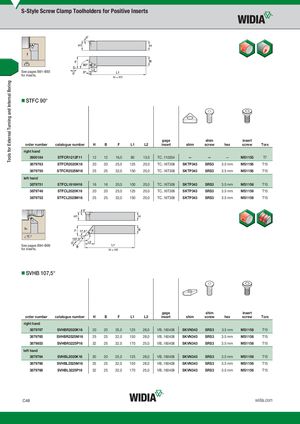

Общий каталог Widia 2017 - страница 288
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B81–B93 for inserts.
- STFC 90°
| order number | catalogue number | H | B | F | L1 | L2 | gage insert | shim | shim screw | hex | insert screw | Torx |
| right hand | ||||||||||||
| 3900184 | STFCR1212F11 | 12 | 12 | 16,0 | 80 | 13,0 | TC..110204 | — | — | — | MS1153 | T7 |
| 3879763 | STFCR2020K16 | 20 | 20 | 25,0 | 125 | 20,0 | TC..16T308 | SKTP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879750 | STFCR2525M16 | 25 | 25 | 32,0 | 150 | 20,0 | TC..16T308 | SKTP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| left hand | ||||||||||||
| 3879751 | STFCL1616H16 | 16 | 16 | 20,0 | 100 | 20,0 | TC..16T308 | SKTP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879748 | STFCL2020K16 | 20 | 20 | 25,0 | 125 | 20,0 | TC..16T308 | SKTP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879752 | STFCL2525M16 | 25 | 25 | 32,0 | 150 | 20,0 | TC..16T308 | SKTP343 | SRS3 | 3.5 mm | MS1156 | T15 |
See pages B94–B99 for inserts.
- SVHB 107,5°
gage shim insert
order number catalogue number H B F L1 L2 insert shim screw hex screw Torx
right hand
| order number | catalogue number | H | B | F | L1 | L2 | gage insert | shim | shim screw | hex | insert screw | Torx |
| right hand | ||||||||||||
| 3879767 | SVHBR2020K16 | 20 | 20 | 25,0 | 125 | 28,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879765 | SVHBR2525M16 | 25 | 25 | 32,0 | 150 | 28,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879853 | SVHBR3225P16 | 32 | 25 | 32,0 | 170 | 25,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 |
| left hand | ||||||||||||
| 3879764 | SVHBL2020K16 | 20 | 20 | 25,0 | 125 | 28,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879766 | SVHBL2525M16 | 25 | 25 | 32,0 | 150 | 28,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879768 | SVHBL3225P16 | 32 | 25 | 32,0 | 170 | 25,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 |
