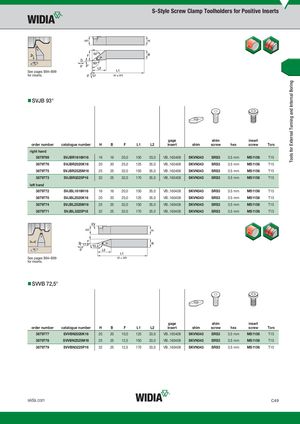

See pages B94–B99 for inserts.
- SVJB 93°
| order number | catalogue number | H | B | F | L1 | L2 | gage insert | shim | shim screw | hex | insert screw | Torx |
| right hand | ||||||||||||
| 3879769 | SVJBR1616H16 | 16 | 16 | 20,0 | 100 | 35,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879776 | SVJBR2020K16 | 20 | 20 | 25,0 | 125 | 35,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879775 | SVJBR2525M16 | 25 | 25 | 32,0 | 150 | 35,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879773 | SVJBR3225P16 | 32 | 25 | 32,0 | 170 | 35,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 |
| left hand | ||||||||||||
| 3879772 | SVJBL1616H16 | 16 | 16 | 20,0 | 100 | 35,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879770 | SVJBL2020K16 | 20 | 20 | 25,0 | 125 | 35,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879774 | SVJBL2525M16 | 25 | 25 | 32,0 | 150 | 35,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879771 | SVJBL3225P16 | 32 | 25 | 32,0 | 170 | 35,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 |
See pages B94–B99 for inserts.
- SVVB 72,5°
gage shim insert
| order number | catalogue number | H | B | F | L1 | L2 | insert | shim | screw | hex | screw | Torx | |
| 3879777 | SVVBN2020K16 | 20 | 20 | 10,0 | 125 | 33,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 | |
| 3879778 | SVVBN2525M16 | 25 | 25 | 12,5 | 150 | 33,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 | |
| 3879779 | SVVBN3225P16 | 32 | 25 | 12,5 | 170 | 33,0 | VB..160408 | SKVN343 | SRS3 | 3.5 mm | MS1156 | T15 |
