See pages B68–B80 for inserts.

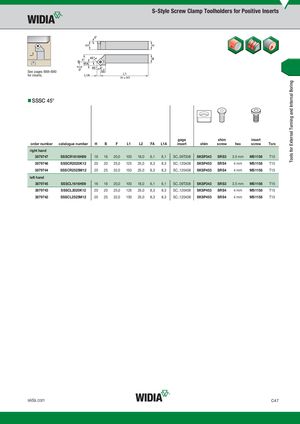

SSSC 45°
| order number | catalogue number | H | B | F | L1 | L2 | FA | L1A | gage insert | shim | shim screw | hex | insert screw | Torx |
| right hand | ||||||||||||||
| 3879747 | SSSCR1616H09 | 16 | 16 | 20,0 | 100 | 18,0 | 6,1 | 6,1 | SC..09T308 | SKSP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879746 | SSSCR2020K12 | 20 | 20 | 25,0 | 125 | 25,0 | 8,3 | 8,3 | SC..120408 | SKSP453 | SRS4 | 4 mm | MS1158 | T15 |
| 3879744 | SSSCR2525M12 | 25 | 25 | 32,0 | 150 | 25,0 | 8,3 | 8,3 | SC..120408 | SKSP453 | SRS4 | 4 mm | MS1158 | T15 |
| left hand | ||||||||||||||
| 3879745 | SSSCL1616H09 | 16 | 16 | 20,0 | 100 | 18,0 | 6,1 | 6,1 | SC..09T308 | SKSP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879743 | SSSCL2020K12 | 20 | 20 | 25,0 | 125 | 25,0 | 8,3 | 8,3 | SC..120408 | SKSP453 | SRS4 | 4 mm | MS1158 | T15 |
| 3879742 | SSSCL2525M12 | 25 | 25 | 32,0 | 150 | 25,0 | 8,3 | 8,3 | SC..120408 | SKSP453 | SRS4 | 4 mm | MS1158 | T15 |
