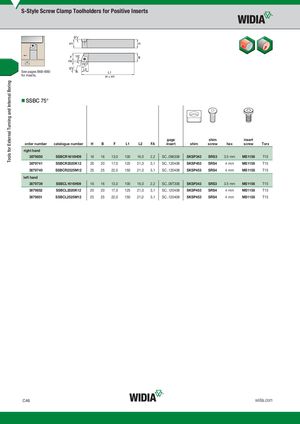

See pages B68–B80 for inserts.
SSBC 75°
gage shim insert
| order number | catalogue number | H | B | F | L1 | L2 | FA | insert shim | screw | hex | screw | Torx | ||
| right hand | ||||||||||||||
| 3879850 | SSBCR1616H09 | 16 | 16 | 13,0 | 100 | 16,0 | 2,2 | SC..096308 | SKSP343 | SRS3 | 3.5 mm | MS1156 | T15 | |
| 3879741 | SSBCR2020K12 | 20 | 20 | 17,0 | 125 | 21,0 | 3,1 | SC..120408 | SKSP453 | SRS4 | 4 mm | MS1158 | T15 | |
| 3879740 | SSBCR2525M12 | 25 | 25 | 22,0 | 150 | 21,0 | 3,1 | SC..120408 | SKSP453 | SRS4 | 4 mm | MS1158 | T15 | |
| left hand | ||||||||||||||
| 3879739 | SSBCL1616H09 | 16 | 16 | 13,0 | 100 | 16,0 | 2,2 | SC..09T308 | SKSP343 | SRS3 | 3.5 mm | MS1156 | T15 | |
| 3879852 | SSBCL2020K12 | 20 | 20 | 17,0 | 125 | 21,0 | 3,1 | SC..120408 | SKSP453 | SRS4 | 4 mm | MS1158 | T15 | |
| 3879851 | SSBCL2525M12 | 25 | 25 | 22,0 | 150 | 21,0 | 3,1 | SC..120408 | SKSP453 | SRS4 | 4 mm | MS1158 | T15 |
