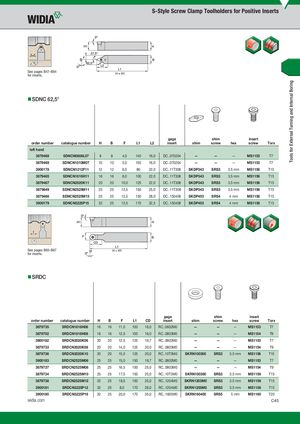

Общий каталог Widia 2017 - страница 285
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B47–B64 for inserts.
- SDNC 62,5°
| order number | catalogue number | H | B | F | L1 | L2 | gage insert | shim | shim screw | hex | insert screw | Torx |
| left hand | ||||||||||||
| 3879468 | SDNCN0808L07 | 8 | 8 | 4,0 | 140 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 3879469 | SDNCN1010M07 | 10 | 10 | 5,0 | 150 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 3900178 | SDNCN1212F11 | 12 | 12 | 6,0 | 80 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879465 | SDNCN1616H11 | 16 | 16 | 8,0 | 100 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879467 | SDNCN2020K11 | 20 | 20 | 10,0 | 125 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879849 | SDNCN2525M11 | 25 | 25 | 12,5 | 150 | 25,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879466 | SDNCN2525M15 | 25 | 25 | 12,5 | 150 | 28,0 | DC..150408 | SKDP453 | SRS4 | 4 mm | MS1158 | T15 |
| 3900179 | SDNCN3225P15 | 32 | 25 | 12,5 | 170 | 32,5 | DC..150408 | SKDP453 | SRS4 | 4 mm | MS1158 | T15 |
See pages B65–B67 for inserts.
- SRDC
gage shim insert
| order number | catalogue number | H | B | F | L1 | CD | insert | shim | screw | hex | screw | Torx | ||
| 3879735 | SRDCN1616H06 | 16 | 16 | 11,0 | 100 | 16,0 | RC..0602M0 | — | — | — | MS1153 | T7 |
| order number | catalogue number | H | B | F | L1 | CD | gage insert | shim | shim screw | hex | insert screw | Torx |
| 3879735 | SRDCN1616H06 | 16 | 16 | 11,0 | 100 | 16,0 | RC..0602M0 | — | — | — | MS1153 | T7 |
| 3879702 | SRDCN1616H08 | 16 | 16 | 12,0 | 100 | 16,0 | RC..0803M0 | — | — | — | MS1154 | T9 |
| 3900182 | SRDCN2020K06 | 20 | 20 | 12,5 | 125 | 19,7 | RC..0602M0 | — | — | — | MS1153 | T7 |
| 3879733 | SRDCN2020K08 | 20 | 20 | 14,0 | 125 | 20,0 | RC..0803M0 | — | — | — | MS1154 | T9 |
| 3879736 | SRDCN2020K10 | 20 | 20 | 15,0 | 125 | 20,0 | RC..10T3M0 | SKRN100300 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3900183 | SRDCN2525M06 | 25 | 25 | 15,0 | 150 | 19,7 | RC..0602M0 | — | — | — | MS1153 | T7 |
| 3879737 | SRDCN2525M08 | 25 | 25 | 16,5 | 150 | 25,0 | RC..0803M0 | — | — | — | MS1154 | T9 |
| 3879734 | SRDCN2525M10 | 25 | 25 | 17,5 | 150 | 25,0 | RC..10T3M0 | SKRN100300 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879738 | SRDCN2525M12 | 25 | 25 | 18,5 | 150 | 25,0 | RC..1204M0 | SKRN1203M0 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3900181 | SRDCN3225P12 | 32 | 25 | 8,0 | 170 | 28,0 | RC..1204M0 | SKRN1203M0 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3900180 | SRDCN3225P16 | 32 | 25 | 20,0 | 170 | 35,0 | RC..1605M0 | SKRN160400 | SRS5 | 5 mm | MS1160 | T20 |
