See pages B47–B64 for inserts.

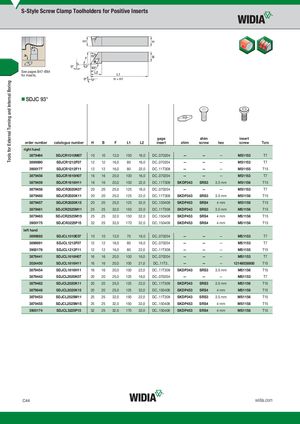

SDJC 93°
| order number | catalogue number | H | B | F | L1 | L2 | gage insert | shim | shim screw | hex | insert screw | Torx |
| right hand | ||||||||||||
| 3879464 | SDJCR1010M07 | 10 | 10 | 12,0 | 150 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 3899890 | SDJCR1212F07 | 12 | 12 | 16,0 | 80 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 3900177 | SDJCR1212F11 | 12 | 12 | 16,0 | 80 | 22,0 | DC..11T308 | — | — | — | MS1155 | T15 |
| 3879456 | SDJCR1616H07 | 16 | 16 | 20,0 | 100 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 3879459 | SDJCR1616H11 | 16 | 16 | 20,0 | 100 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879458 | SDJCR2020K07 | 20 | 20 | 25,0 | 125 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 3879460 | SDJCR2020K11 | 20 | 20 | 25,0 | 125 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879457 | SDJCR2020K15 | 20 | 20 | 25,0 | 125 | 32,0 | DC..150408 | SKDP453 | SRS4 | 4 mm | MS1158 | T15 |
| 3879461 | SDJCR2525M11 | 25 | 25 | 32,0 | 150 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879463 | SDJCR2525M15 | 25 | 25 | 32,0 | 150 | 32,0 | DC..150408 | SKDP453 | SRS4 | 4 mm | MS1158 | T15 |
| 3900175 | SDJCR3225P15 | 32 | 25 | 32,0 | 170 | 32,0 | DC..150408 | SKDP453 | SRS4 | 4 mm | MS1158 | T15 |
| left hand | ||||||||||||
| 3899892 | SDJCL1010E07 | 10 | 10 | 12,0 | 70 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 3899891 | SDJCL1212F07 | 12 | 12 | 16,0 | 80 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 3900176 | SDJCL1212F11 | 12 | 12 | 16,0 | 80 | 22,0 | DC..11T308 | — | — | — | MS1155 | T15 |
| 3879441 | SDJCL1616H07 | 16 | 16 | 20,0 | 100 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 2024450 | SDJCL1616H11 | 16 | 16 | 20,0 | 100 | 21,0 | DC..11T3.. | — | — | — | 12148038800 | T15 |
| 3879454 | SDJCL1616H11 | 16 | 16 | 20,0 | 100 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879442 | SDJCL2020K07 | 20 | 20 | 25,0 | 125 | 16,0 | DC..070204 | — | — | — | MS1153 | T7 |
| 3879462 | SDJCL2020K11 | 20 | 20 | 25,0 | 125 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879848 | SDJCL2020K15 | 20 | 20 | 25,0 | 125 | 32,0 | DC..150408 | SKDP453 | SRS4 | 4 mm | MS1158 | T15 |
| 3879453 | SDJCL2525M11 | 25 | 25 | 32,0 | 150 | 22,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879455 | SDJCL2525M15 | 25 | 25 | 32,0 | 150 | 32,0 | DC..150408 | SKDP453 | SRS4 | 4 mm | MS1158 | T15 |
| 3900174 | SDJCL3225P15 | 32 | 25 | 32,0 | 170 | 32,0 | DC..150408 | SKDP453 | SRS4 | 4 mm | MS1158 | T15 |
