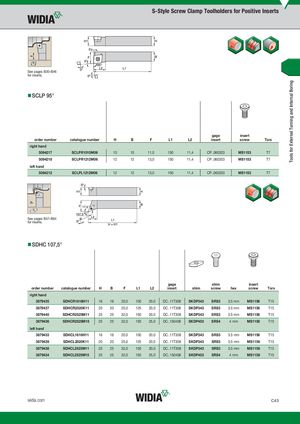

See pages B30–B46 for inserts.
- SCLP 95°
gage insert
| order number | catalogue number | H | B | F | L1 | L2 | insert | screw | Torx | |
| right hand | ||||||||||
| 5094217 | SCLPR1010M06 | 10 | 10 | 11,0 | 150 | 11,4 | CP..060203 | MS1153 | T7 | |
| 5094218 | SCLPR1212M06 | 12 | 12 | 13,0 | 150 | 11,4 | CP..060203 | MS1153 | T7 | |
| left hand | ||||||||||
| 5094212 | SCLPL1212M06 | 12 | 12 | 13,0 | 150 | 11,4 | CP..060203 | MS1153 | T7 |
See pages B47–B64 for inserts.
- SDHC 107,5°
gage shim insert
order number catalogue number H B F L1 L2 insert shim screw hex screw Torx
right hand
| order number | catalogue number | H | B | F | L1 | L2 | gage insert | shim | shim screw | hex | insert screw | Torx |
| right hand | ||||||||||||
| 3879435 | SDHCR1616H11 | 16 | 16 | 20,0 | 100 | 20,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879437 | SDHCR2020K11 | 20 | 20 | 25,0 | 125 | 20,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879440 | SDHCR2525M11 | 25 | 25 | 32,0 | 150 | 20,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879436 | SDHCR2525M15 | 25 | 25 | 32,0 | 150 | 25,0 | DC..150408 | SKDP453 | SRS4 | 4 mm | MS1158 | T15 |
| left hand | ||||||||||||
| 3879433 | SDHCL1616H11 | 16 | 16 | 20,0 | 100 | 20,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879439 | SDHCL2020K11 | 20 | 20 | 25,0 | 125 | 20,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879438 | SDHCL2525M11 | 25 | 25 | 32,0 | 150 | 20,0 | DC..11T308 | SKDP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879434 | SDHCL2525M15 | 25 | 25 | 32,0 | 150 | 25,0 | DC..150408 | SKDP453 | SRS4 | 4 mm | MS1158 | T15 |
