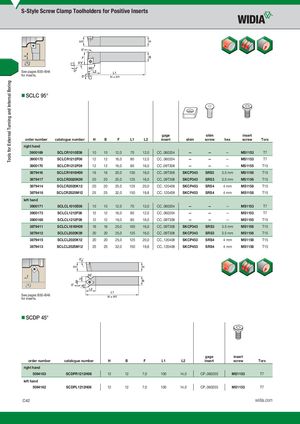

See pages B30–B46 for inserts.
- SCLC 95°
| order number | catalogue number | H | B | F | L1 | L2 | gage insert | shim | shim screw | hex | insert screw | Torx |
| right hand | ||||||||||||
| 3900169 | SCLCR1010E06 | 10 | 10 | 12,0 | 70 | 12,0 | CC..060204 | — | — | — | MS1153 | T7 |
| 3900172 | SCLCR1212F06 | 12 | 12 | 16,0 | 80 | 12,0 | CC..060204 | — | — | — | MS1153 | T7 |
| 3900170 | SCLCR1212F09 | 12 | 12 | 16,0 | 80 | 16,0 | CC..09T308 | — | — | — | MS1155 | T15 |
| 3879416 | SCLCR1616H09 | 16 | 16 | 20,0 | 100 | 16,0 | CC..09T308 | SKCP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879417 | SCLCR2020K09 | 20 | 20 | 25,0 | 125 | 16,0 | CC..09T308 | SKCP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879414 | SCLCR2020K12 | 20 | 20 | 25,0 | 125 | 20,0 | CC..120408 | SKCP453 | SRS4 | 4 mm | MS1158 | T15 |
| 3879418 | SCLCR2525M12 | 25 | 25 | 32,0 | 150 | 19,8 | CC..120408 | SKCP453 | SRS4 | 4 mm | MS1158 | T15 |
| left hand | ||||||||||||
| 3900171 | SCLCL1010E06 | 10 | 10 | 12,0 | 70 | 12,0 | CC..060204 | — | — | — | MS1153 | T7 |
| 3900173 | SCLCL1212F06 | 12 | 12 | 16,0 | 80 | 12,0 | CC..060204 | — | — | — | MS1153 | T7 |
| 3900168 | SCLCL1212F09 | 12 | 12 | 16,0 | 80 | 16,0 | CC..09T308 | — | — | — | MS1155 | T15 |
| 3879411 | SCLCL1616H09 | 16 | 16 | 20,0 | 100 | 16,0 | CC..09T308 | SKCP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879412 | SCLCL2020K09 | 20 | 20 | 25,0 | 125 | 16,0 | CC..09T308 | SKCP343 | SRS3 | 3.5 mm | MS1156 | T15 |
| 3879415 | SCLCL2020K12 | 20 | 20 | 25,0 | 125 | 20,0 | CC..120408 | SKCP453 | SRS4 | 4 mm | MS1158 | T15 |
| 3879413 | SCLCL2525M12 | 25 | 25 | 32,0 | 150 | 19,8 | CC..120408 | SKCP453 | SRS4 | 4 mm | MS1158 | T15 |
See pages B30–B46 for inserts.
- SCDP 45°
gage insert
| order number | catalogue number | H | B | F | L1 | L2 | insert | screw | Torx | |||
| right hand | ||||||||||||
| 5094163 | SCDPR1212H06 | 12 | 12 | 7,0 | 100 | 14,0 | CP..060203 | MS1153 | T7 | |||
| left hand | ||||||||||||
| 5094162 | SCDPL1212H06 | 12 | 12 | 7,0 | 100 | 14,0 | CP..060203 | MS1153 | T7 |
