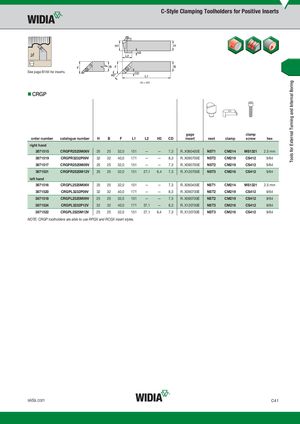

See page B184 for inserts.
H = H1
CRGP
| order number | catalogue number | H | B | F | L1 | L2 | H3 | CD | gage insert | nest | clamp | clamp screw | hex |
| right hand | |||||||||||||
| 3871515 | CRGPR2525M06V | 25 | 25 | 32,0 | 151 | — | — | 7,3 | R..X060400E | NST1 | CM214 | MS1321 | 2.5 mm |
| 3871519 | CRGPR3232P09V | 32 | 32 | 40,0 | 171 | — | — | 8,3 | R..X090700E | NST2 | CM219 | CS412 | 9/64 |
| 3871517 | CRGPR2525M09V | 25 | 25 | 32,0 | 151 | — | — | 7,3 | R..X090700E | NST2 | CM219 | CS412 | 9/64 |
| 3871521 | CRGPR2525M12V | 25 | 25 | 32,0 | 151 | 27,1 | 6,4 | 7,3 | R..X120700E | NST3 | CM216 | CS412 | 9/64 |
| left hand | |||||||||||||
| 3871516 | CRGPL2525M06V | 25 | 25 | 32,0 | 151 | — | — | 7,3 | R..X060400E | NST1 | CM214 | MS1321 | 2.5 mm |
| 3871520 | CRGPL3232P09V | 32 | 32 | 40,0 | 171 | — | — | 8,3 | R..X090700E | NST2 | CM219 | CS412 | 9/64 |
| 3871518 | CRGPL2525M09V | 25 | 25 | 32,0 | 151 | — | — | 7,3 | R..X090700E | NST2 | CM219 | CS412 | 9/64 |
| 3871524 | CRGPL3232P12V | 32 | 32 | 40,0 | 171 | 37,1 | — | 8,3 | R..X120700E | NST3 | CM216 | CS412 | 9/64 |
| 3871522 | CRGPL2525M12V | 25 | 25 | 32,0 | 151 | 27,1 | 6,4 | 7,3 | R..X120700E | NST3 | CM216 | CS412 | 9/64 |
