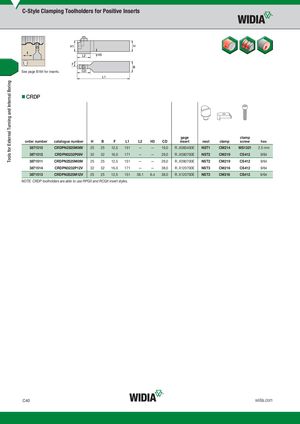

Общий каталог Widia 2017 - страница 280
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See page B184 for inserts.
CRDP
gage clamp
| order number | catalogue number | H | B | F | L1 | L2 | H3 | CD | insert nest | clamp | screw | hex | |
| 3871510 | CRDPN2525M06V | 25 | 25 | 12,5 | 151 | — | — | 19,0 | R..X060400E | NST1 | CM214 | MS1321 | 2.5 mm |
| 3871512 | CRDPN3232P09V | 32 | 32 | 16,0 | 171 | — | — | 29,0 | R..X090700E | NST2 | CM219 | CS412 | 9/64 |
| 3871511 | CRDPN2525M09V | 25 | 25 | 12,5 | 151 | — | — | 29,0 | R..X090700E | NST2 | CM219 | CS412 | 9/64 |
| 3871514 | CRDPN3232P12V | 32 | 32 | 16,0 | 171 | — | — | 38,0 | R..X120700E | NST3 | CM216 | CS412 | 9/64 |
| 3871513 | CRDPN2525M12V | 25 | 25 | 12,5 | 151 | 38,1 | 6,4 | 38,0 | R..X120700E | NST3 | CM216 | CS412 | 9/64 |
NOTE: CRDP toolholders are able to use RPGX and RCGX insert styles.
