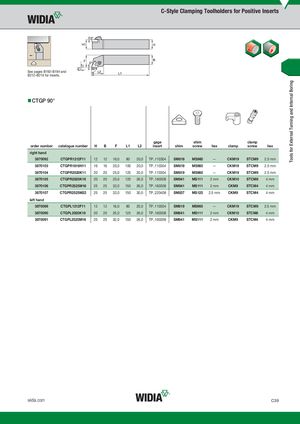

Общий каталог Widia 2017 - страница 279
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B192–B194 and B212–B216 for inserts.
CTGP 90°
| order number | catalogue number | H | B | F | L1 | L2 | gage insert | shim | shim screw | hex | clamp | clamp screw | hex |
| right hand | |||||||||||||
| 3870092 | CTGPR1212F11 | 12 | 12 | 16,0 | 80 | 20,0 | TP..110304 | SM819 | MS960 | — | CKM19 | STCM9 | 2.5 mm |
| 3870103 | CTGPR1616H11 | 16 | 16 | 20,0 | 100 | 20,0 | TP..110304 | SM819 | MS960 | — | CKM19 | STCM9 | 2.5 mm |
| 3870104 | CTGPR2020K11 | 20 | 20 | 25,0 | 125 | 20,0 | TP..110304 | SM819 | MS960 | — | CKM19 | STCM9 | 2.5 mm |
| 3870105 | CTGPR2020K16 | 20 | 20 | 25,0 | 125 | 26,0 | TP..160308 | SM841 | MS111 | 2 mm | CKM10 | STCM8 | 4 mm |
| 3870106 | CTGPR2525M16 | 25 | 25 | 32,0 | 150 | 26,0 | TP..160308 | SM841 | MS111 | 2 mm | CKM9 | STCM4 | 4 mm |
| 3870107 | CTGPR2525M22 | 25 | 25 | 32,0 | 150 | 30,0 | TP..220408 | SM837 | MS125 | 2.5 mm | CKM9 | STCM4 | 4 mm |
| left hand | |||||||||||||
| 3870089 | CTGPL1212F11 | 12 | 12 | 16,0 | 80 | 20,0 | TP..110304 | SM819 | MS960 | — | CKM19 | STCM9 | 2.5 mm |
| 3870090 | CTGPL2020K16 | 20 | 20 | 25,0 | 125 | 26,0 | TP..160308 | SM841 | MS111 | 2 mm | CKM10 | STCM8 | 4 mm |
| 3870091 | CTGPL2525M16 | 25 | 25 | 32,0 | 150 | 26,0 | TP..160308 | SM841 | MS111 | 2 mm | CKM9 | STCM4 | 4 mm |
