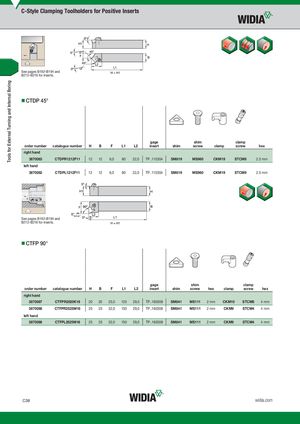

Tools for External Turning and Internal Boring C-Style Clamping Toolholders for Positive Inserts See pages B192–B194 and B212–B216 for inserts. „CTDP 45° gage shim clamp order number catalogue number H B F L1 L2 insert shim screw clamp screw hex right hand 3870083 CTDPR1212F11 12 12 6,0 80 22,0 TP..110304 SM819 MS960 CKM19 STCM9 2.5 mm left hand 3870082 CTDPL1212F11 12 12 6,0 80 22,0 TP..110304 SM819 MS960 CKM19 STCM9 2.5 mm See pages B192–B194 and B212–B216 for inserts. „CTFP 90° gage shim clamp order number catalogue number H B F L1 L2 insert shim screw hex clamp screw hex right hand 3870087 CTFPR2020K16 20 20 25,0 125 29,0 TP..160308 SM841 MS111 2 mm CKM10 STCM8 4 mm 3870088 CTFPR2525M16 25 25 32,0 150 29,0 TP..160308 SM841 MS111 2 mm CKM9 STCM4 4 mm left hand 3870086 CTFPL2525M16 25 25 32,0 150 29,0 TP..160308 SM841 MS111 2 mm CKM9 STCM4 4 mm C38 widia.com
