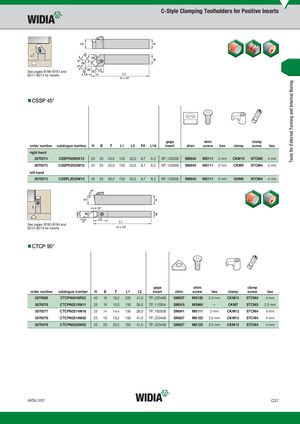

Tools for External Turning and Internal Boring C-Style Clamping Toolholders for Positive Inserts See pages B186–B191 and B211–B212 for inserts. „CSSP 45° gage shim clamp order number catalogue number H B F L1 L2 FA L1A insert shim screw hex clamp screw hex right hand 3870074 CSSPR2020K12 20 20 25,0 125 32,0 8,7 8,3 SP..120308 SM840 MS111 2 mm CKM10 STCM8 4 mm 3870075 CSSPR2525M12 25 25 32,0 150 32,0 8,7 8,3 SP..120308 SM840 MS111 2 mm CKM9 STCM4 4 mm left hand 3870073 CSSPL2525M12 25 25 32,0 150 32,0 8,7 8,3 SP..120308 SM840 MS111 2 mm CKM9 STCM4 4 mm See pages B192–B194 and B212–B216 for inserts. „CTCP 90° gage shim clamp order number catalogue number H B F L1 L2 insert shim screw hex clamp screw hex 3870080 CTCPN4018R22 40 18 19,2 200 41,0 TP..220408 SM837 MS125 2.5 mm CKM13 STCM4 4 mm 3870076 CTCPN2510M11 25 10 10,0 150 26,0 TP..110304 SM819 MS960 — CKM7 STCM5 2.5 mm 3870077 CTCPN2514M16 25 14 14,4 150 28,0 TP..160308 SM841 MS111 2 mm CKM13 STCM4 4 mm 3870078 CTCPN2518M22 25 18 19,2 150 41,0 TP..220408 SM837 MS125 2.5 mm CKM13 STCM4 4 mm 3870079 CTCPN2520M22 25 20 20,2 150 41,0 TP..220408 SM837 MS125 2.5 mm CKM13 STCM4 4 mm widia.com C37
