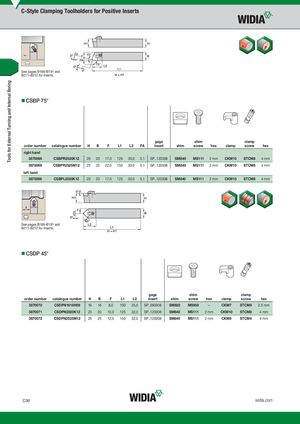

Tools for External Turning and Internal Boring C-Style Clamping Toolholders for Positive Inserts See pages B186–B191 and B211–B212 for inserts. „CSBP 75° gage shim clamp order number catalogue number H B F L1 L2 FA insert shim screw hex clamp screw hex right hand 3870068 CSBPR2020K12 20 20 17,0 125 30,0 3,1 SP..120308 SM840 MS111 2 mm CKM10 STCM8 4 mm 3870069 CSBPR2525M12 25 25 22,0 150 30,0 3,1 SP..120308 SM840 MS111 2 mm CKM10 STCM8 4 mm left hand 3870066 CSBPL2020K12 20 20 17,0 125 30,0 3,1 SP..120308 SM840 MS111 2 mm CKM10 STCM8 4 mm See pages B186–B191 and B211–B212 for inserts. „CSDP 45° gage shim clamp order number catalogue number H B F L1 L2 insert shim screw hex clamp screw hex 3870070 CSDPN1616H09 16 16 8,0 100 25,0 SP..090308 SM820 MS959 — CKM7 STCM9 2.5 mm 3870071 CSDPN2020K12 20 20 10,0 125 32,0 SP..120308 SM840 MS111 2 mm CKM10 STCM8 4 mm 3870072 CSDPN2525M12 25 25 12,5 150 32,0 SP..120308 SM840 MS111 2 mm CKM9 STCM4 4 mm C36 widia.com
