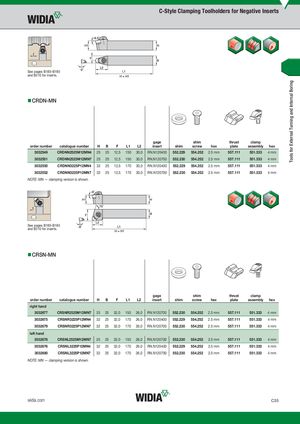

Общий каталог Widia 2017 - страница 275
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B183–B185 and B210 for inserts.
- CRDN-MN
gage shim thrust clamp
| order number | catalogue number | H | B | F | L1 | L2 | insert | shim | screw | hex | plate | assembly | hex | ||
| 3032549 | CRDNN2525M12MN4 | 25 | 25 | 12,5 | 150 | 30,0 | RN.N120400 | 552.229 | 554.252 | 2.5 mm | 557.111 | 551.333 | 4 mm | ||
| 3032551 | CRDNN2525M12MN7 | 25 | 25 | 12,5 | 150 | 30,0 | RN.N120700 | 552.230 | 554.252 | 2.5 mm | 557.111 | 551.333 | 4 mm | ||
| 3032550 | CRDNN3225P12MN4 | 32 | 25 | 12,5 | 170 | 30,0 | RN.N120400 | 552.229 | 554.252 | 2.5 mm | 557.111 | 551.333 | 4 mm | ||
| 3032552 | CRDNN3225P12MN7 | 32 | 25 | 12,5 | 170 | 30,0 | RN.N120700 | 552.230 | 554.252 | 2.5 mm | 557.111 | 551.333 | 4 mm |
NOTE: MN — clamping version is shown.
See pages B183–B185 and B210 for inserts.
- CRSN-MN
gage shim thrust clamp
| order number | catalogue number | H | B | F | L1 | L2 | insert shim | screw | hex | plate | assembly | hex | ||
| right hand | ||||||||||||||
| 3032677 | CRSNR2525M12MN7 | 25 | 25 | 32,0 | 150 | 26,0 | RN.N120700 | 552.230 | 554.252 | 2.5 mm | 557.111 | 551.333 | 4 mm | |
| 3032675 | CRSNR3225P12MN4 | 32 | 25 | 32,0 | 170 | 26,0 | RN.N120400 | 552.229 | 554.252 | 2.5 mm | 557.111 | 551.333 | 4 mm | |
| 3032679 | CRSNR3225P12MN7 | 32 | 25 | 32,0 | 170 | 26,0 | RN.N120700 | 552.230 | 554.252 | 2.5 mm | 557.111 | 551.333 | 4 mm | |
| left hand | ||||||||||||||
| 3032678 | CRSNL2525M12MN7 | 25 | 25 | 32,0 | 150 | 26,0 | RN.N120700 | 552.230 | 554.252 | 2.5 mm | 557.111 | 551.333 | 4 mm | |
| 3032676 | CRSNL3225P12MN4 | 32 | 25 | 32,0 | 170 | 26,0 | RN.N120400 | 552.229 | 554.252 | 2.5 mm | 557.111 | 551.333 | 4 mm | |
| 3032680 | CRSNL3225P12MN7 | 32 | 25 | 32,0 | 170 | 26,0 | RN.N120700 | 552.230 | 554.252 | 2.5 mm | 557.111 | 551.333 | 4 mm |
NOTE: MN — clamping version is shown.
