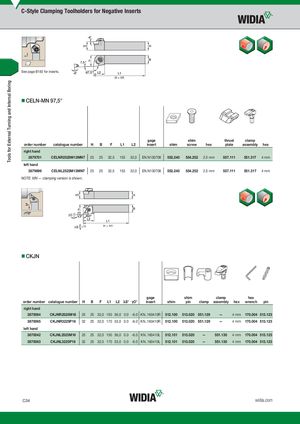

Tools for External Turning and Internal Boring C-Style Clamping Toolholders for Negative Inserts See page B182 for inserts. „CELN-MN 97,5° gage shim thrust clamp order number catalogue number H B F L1 L2 insert shim screw hex plate assembly hex right hand 3879701 CELNR2525M13MN7 25 25 32,5 153 32,0 EN.N130708 552.240 554.252 2.5 mm 557.111 551.317 4 mm left hand 3879699 CELNL2525M13MN7 25 25 32,5 153 32,0 EN.N130708 552.240 554.252 2.5 mm 557.111 551.317 4 mm NOTE: MN — clamping version is shown. H = H1 „CKJN gage shim clamp hex order number catalogue number H B F L1 L2 hS° aO° insert shim pin clamp assembly hex wrench pin right hand 3870064 CKJNR2525M16 25 25 32,0 150 36,0 0.0 -6.0 KN..160410R 512.100 513.020 551.129 — 4 mm 170.004 513.123 3870065 CKJNR3225P16 32 25 32,0 170 33,0 0.0 -6.0 KN..160410R 512.100 513.020 551.129 — 4 mm 170.004 513.123 left hand 3870042 CKJNL2525M16 25 25 32,0 150 36,0 0.0 -6.0 KN..160410L 512.101 513.020 — 551.130 4 mm 170.004 513.123 3870063 CKJNL3225P16 32 25 32,0 170 33,0 0.0 -6.0 KN..160410L 512.101 513.020 — 551.130 4 mm 170.004 513.123 C34 widia.com
