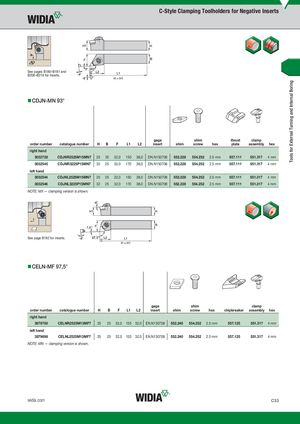

Tools for External Turning and Internal Boring C-Style Clamping Toolholders for Negative Inserts See pages B180–B181 and B206–B216 for inserts. „CDJN-MN 93° gage shim thrust clamp order number catalogue number H B F L1 L2 insert shim screw hex plate assembly hex right hand 3032728 CDJNR2525M15MN7 25 25 32,0 150 38,0 DN.N150708 552.228 554.252 2.5 mm 557.111 551.317 4 mm 3032545 CDJNR3225P15MN7 32 25 32,0 170 38,0 DN.N150708 552.228 554.252 2.5 mm 557.111 551.317 4 mm left hand 3032544 CDJNL2525M15MN7 25 25 32,0 150 38,0 DN.N150708 552.228 554.252 2.5 mm 557.111 551.317 4 mm 3032546 CDJNL3225P15MN7 32 25 32,0 170 38,0 DN.N150708 552.228 554.252 2.5 mm 557.111 551.317 4 mm NOTE: MX — clamping version is shown. See page B182 for inserts. „CELN-MF 97,5° gage shim clamp order number catalogue number H B F L1 L2 insert shim screw hex chipbreaker assembly hex right hand 3879700 CELNR2525M13MF7 25 25 32,5 153 32,0 EN.N130708 552.240 554.252 2.5 mm 557.125 551.317 4 mm left hand 3879698 CELNL2525M13MF7 25 25 32,5 153 32,0 EN.N130708 552.240 554.252 2.5 mm 557.125 551.317 4 mm NOTE: MN — clamping version is shown. widia.com C33
