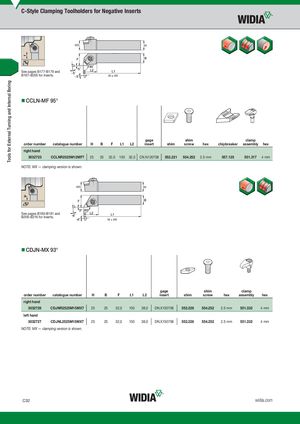

Общий каталог Widia 2017 - страница 272
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B177–B179 and B197–B205 for inserts.
- CCLN-MF 95°
gage shim clamp
| order number | catalogue number | H | B | F | L1 | L2 | insert | shim | screw | hex | chipbreaker | assembly | hex | ||
| right hand | |||||||||||||||
| 3032723 | CCLNR2525M12MF7 | 25 | 25 | 32,0 | 150 | 32,0 | CN.N120708 | 552.221 | 554.252 | 2.5 mm | 557.125 | 551.317 | 4 mm |
NOTE: MX — clamping version is shown.
See pages B180–B181 and B206–B216 for inserts.
- CDJN-MX 93°
gage shim clamp
| order number | catalogue number | H | B | F | L1 | L2 | insert | shim | screw | hex | assembly | hex | ||
| right hand | ||||||||||||||
| 3032726 | CDJNR2525M15MX7 | 25 | 25 | 32,0 | 150 | 38,0 | DN.X150708 | 552.228 | 554.252 | 2.5 mm | 551.332 | 4 mm | ||
| left hand | ||||||||||||||
| 3032727 | CDJNL2525M15MX7 | 25 | 25 | 32,0 | 150 | 38,0 | DN.X150708 | 552.228 | 554.252 | 2.5 mm | 551.332 | 4 mm |
NOTE: MX — clamping version is shown.
