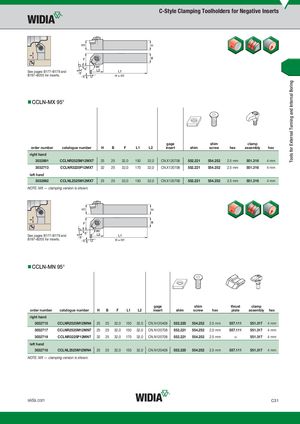

Tools for External Turning and Internal Boring C-Style Clamping Toolholders for Negative Inserts See pages B177–B179 and B197–B205 for inserts. CCLN-MX 95° gage shim clamp order number catalogue number H B F L1 L2 insert shim screw hex assembly hex right hand 3032691 CCLNR2525M12MX7 25 25 32,0 150 32,0 CN.X120708 552.221 554.252 2.5 mm 551.316 4 mm 3032713 CCLNR3225P12MX7 32 25 32,0 170 32,0 CN.X120708 552.221 554.252 2.5 mm 551.316 4 mm left hand 3032692 CCLNL2525M12MX7 25 25 32,0 150 32,0 CN.X120708 552.221 554.252 2.5 mm 551.316 4 mm NOTE: MX — clamping version is shown. See pages B177–B179 and B197–B205 for inserts. CCLN-MN 95° gage shim thrust clamp order number catalogue number H B F L1 L2 insert shim screw hex plate assembly hex right hand 3032715 CCLNR2525M12MN4 25 25 32,0 150 32,0 CN.N120408 552.220 554.252 2.5 mm 557.111 551.317 4 mm 3032717 CCLNR2525M12MN7 25 25 32,0 150 32,0 CN.N120708 552.221 554.252 2.5 mm 557.111 551.317 4 mm 3032719 CCLNR3225P12MN7 32 25 32,0 170 32,0 CN.N120708 552.221 554.252 2.5 mm — 551.317 4 mm left hand 3032716 CCLNL2525M12MN4 25 25 32,0 150 32,0 CN.N120408 552.220 554.252 2.5 mm 557.111 551.317 4 mm NOTE: MX — clamping version is shown. widia.com C31
