See pages B99–B105 for inserts.

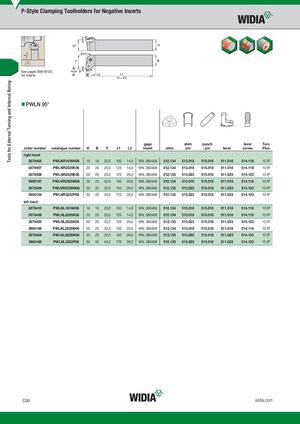

PWLN 95°
| order number | catalogue number | H | B | F | L1 | L2 | gage insert | shim | shim pin | punch pin | lever | lever screw | Torx Plus |
| right hand | |||||||||||||
| 3879405 | PWLNR1616H06 | 16 | 16 | 20,0 | 100 | 14,0 | WN..060408 | 512.134 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879407 | PWLNR2020K06 | 20 | 20 | 25,0 | 125 | 14,0 | WN..060408 | 512.134 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879408 | PWLNR2020K08 | 20 | 20 | 25,0 | 125 | 20,0 | WN..080408 | 512.135 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3900167 | PWLNR2525M06 | 25 | 25 | 32,0 | 150 | 20,0 | WN..060408 | 512.134 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879409 | PWLNR2525M08 | 25 | 25 | 32,0 | 150 | 26,0 | WN..080408 | 512.135 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3900164 | PWLNR3232P08 | 32 | 32 | 40,0 | 170 | 26,0 | WN..080408 | 512.135 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| left hand | |||||||||||||
| 3879410 | PWLNL1616H06 | 16 | 16 | 20,0 | 100 | 14,0 | WN..060408 | 512.134 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879406 | PWLNL2020K06 | 20 | 20 | 25,0 | 125 | 14,0 | WN..060408 | 512.134 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879403 | PWLNL2020K08 | 20 | 20 | 25,0 | 125 | 20,0 | WN..080408 | 512.135 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3900166 | PWLNL2525M06 | 25 | 25 | 32,0 | 150 | 20,0 | WN..060408 | 512.134 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879404 | PWLNL2525M08 | 25 | 25 | 32,0 | 150 | 26,0 | WN..080408 | 512.135 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3900165 | PWLNL3232P08 | 32 | 32 | 40,0 | 170 | 26,0 | WN..080408 | 512.135 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
