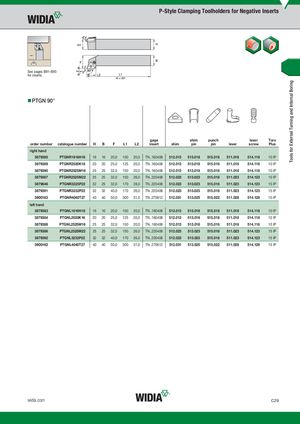

Общий каталог Widia 2017 - страница 269
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B81–B93 for inserts.
PTGN 90°
| order number | catalogue number | H | B | F | L1 | L2 | gage insert | shim | shim pin | punch pin | lever | lever screw | Torx Plus |
| right hand | |||||||||||||
| 3879385 | PTGNR1616H16 | 16 | 16 | 20,0 | 100 | 20,0 | TN..160408 | 512.013 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879389 | PTGNR2020K16 | 20 | 20 | 25,0 | 125 | 20,0 | TN..160408 | 512.013 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879390 | PTGNR2525M16 | 25 | 25 | 32,0 | 150 | 20,0 | TN..160408 | 512.013 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879387 | PTGNR2525M22 | 25 | 25 | 32,0 | 150 | 26,0 | TN..220408 | 512.023 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879846 | PTGNR3225P22 | 32 | 25 | 32,0 | 170 | 28,0 | TN..220408 | 512.023 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879391 | PTGNR3232P22 | 32 | 32 | 40,0 | 170 | 26,0 | TN..220408 | 512.023 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3900163 | PTGNR4040T27 | 40 | 40 | 50,0 | 300 | 31,0 | TN..270612 | 512.031 | 513.025 | 515.022 | 511.028 | 514.128 | 15 IP |
| left hand | |||||||||||||
| 3879383 | PTGNL1616H16 | 16 | 16 | 20,0 | 100 | 20,0 | TN..160408 | 512.013 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879384 | PTGNL2020K16 | 20 | 20 | 25,0 | 125 | 20,0 | TN..160408 | 512.013 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879388 | PTGNL2525M16 | 25 | 25 | 32,0 | 150 | 20,0 | TN..160408 | 512.013 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879386 | PTGNL2525M22 | 25 | 25 | 32,0 | 150 | 26,0 | TN..220408 | 512.023 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879392 | PTGNL3232P22 | 32 | 32 | 40,0 | 170 | 26,0 | TN..220408 | 512.023 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3900162 | PTGNL4040T27 | 40 | 40 | 50,0 | 300 | 31,0 | TN..270612 | 512.031 | 513.025 | 515.022 | 511.028 | 514.128 | 15 IP |
