See pages B81–B93 for inserts.

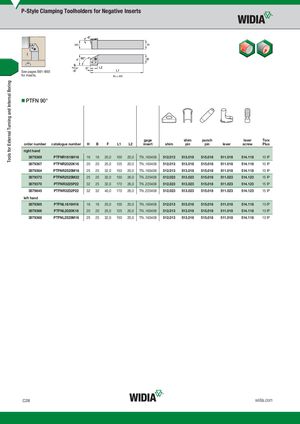

PTFN 90°
| order number | catalogue number | H | B | F | L1 | L2 | gage insert | shim | shim pin | punch pin | lever | lever screw | Torx Plus |
| right hand | |||||||||||||
| 3879369 | PTFNR1616H16 | 16 | 16 | 20,0 | 100 | 20,0 | TN..160408 | 512.013 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879367 | PTFNR2020K16 | 20 | 20 | 25,0 | 125 | 20,0 | TN..160408 | 512.013 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879364 | PTFNR2525M16 | 25 | 25 | 32,0 | 150 | 20,0 | TN..160408 | 512.013 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879372 | PTFNR2525M22 | 25 | 25 | 32,0 | 150 | 26,0 | TN..220408 | 512.023 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879370 | PTFNR3225P22 | 32 | 25 | 32,0 | 170 | 26,0 | TN..220408 | 512.023 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879845 | PTFNR3232P22 | 32 | 32 | 40,0 | 170 | 26,0 | TN..220408 | 512.023 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| left hand | |||||||||||||
| 3879365 | PTFNL1616H16 | 16 | 16 | 20,0 | 100 | 20,0 | TN..160408 | 512.013 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879366 | PTFNL2020K16 | 20 | 20 | 25,0 | 125 | 20,0 | TN..160408 | 512.013 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879368 | PTFNL2525M16 | 25 | 25 | 32,0 | 150 | 20,0 | TN..160408 | 512.013 | 513.018 | 515.018 | 511.018 | 514.118 | 10 IP |
