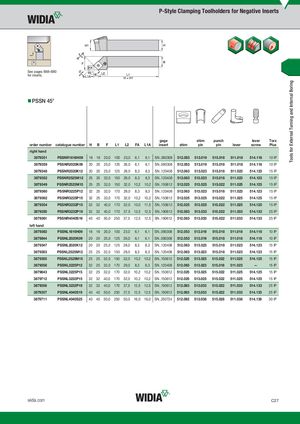

Общий каталог Widia 2017 - страница 267
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B68–B80 for inserts.
PSSN 45°
| order number | catalogue number | H | B | F | L1 | L2 | FA | L1A | gage insert | shim | shim pin | punch pin | lever | lever screw | Torx Plus |
| right hand | |||||||||||||||
| 3879351 | PSSNR1616H09 | 16 | 16 | 20,0 | 100 | 23,0 | 6,1 | 6,1 | SN..090308 | 512.053 | 513.019 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879359 | PSSNR2020K09 | 20 | 20 | 25,0 | 125 | 26,0 | 6,1 | 6,1 | SN..090308 | 512.053 | 513.019 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879348 | PSSNR2020K12 | 20 | 20 | 25,0 | 125 | 28,0 | 8,3 | 8,3 | SN..120408 | 512.063 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879352 | PSSNR2525M12 | 25 | 25 | 32,0 | 150 | 28,0 | 8,3 | 8,3 | SN..120408 | 512.063 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879349 | PSSNR2525M15 | 25 | 25 | 32,0 | 150 | 32,0 | 10,2 | 10,2 | SN..150612 | 512.025 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3879360 | PSSNR3225P12 | 32 | 25 | 32,0 | 170 | 29,0 | 8,3 | 8,3 | SN..120408 | 512.063 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879362 | PSSNR3225P15 | 32 | 25 | 32,0 | 170 | 32,0 | 10,2 | 10,2 | SN..150612 | 512.025 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3879354 | PSSNR3232P15 | 32 | 32 | 40,0 | 170 | 32,0 | 10,0 | 11,5 | SN..150612 | 512.025 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3879350 | PSSNR3232P19 | 32 | 32 | 40,0 | 170 | 37,5 | 12,5 | 12,5 | SN..190612 | 512.083 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3879361 | PSSNR4040S19 | 40 | 40 | 50,0 | 250 | 37,5 | 12,5 | 12,5 | SN..190612 | 512.083 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| left hand | |||||||||||||||
| 3879363 | PSSNL1616H09 | 16 | 16 | 20,0 | 100 | 23,0 | 6,1 | 6,1 | SN..090308 | 512.053 | 513.019 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879844 | PSSNL2020K09 | 20 | 20 | 25,0 | 125 | 26,0 | 6,1 | 6,1 | SN..090308 | 512.053 | 513.019 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879347 | PSSNL2020K12 | 20 | 20 | 25,0 | 125 | 28,0 | 8,3 | 8,3 | SN..120408 | 512.063 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879353 | PSSNL2525M12 | 25 | 25 | 32,0 | 150 | 28,0 | 8,3 | 8,3 | SN..120408 | 512.063 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879355 | PSSNL2525M15 | 25 | 25 | 32,0 | 150 | 32,0 | 10,2 | 10,2 | SN..150612 | 512.025 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3879358 | PSSNL3225P12 | 32 | 25 | 32,0 | 170 | 29,0 | 8,3 | 8,3 | SN..120408 | 512.063 | 513.023 | 515.018 | 511.023 | — | 15 IP |
| 3879843 | PSSNL3225P15 | 32 | 25 | 32,0 | 170 | 32,0 | 10,2 | 10,2 | SN..150612 | 512.025 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3879712 | PSSNL3232P15 | 32 | 32 | 40,0 | 170 | 32,0 | 10,2 | 10,2 | SN..150612 | 512.025 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3879356 | PSSNL3232P19 | 32 | 32 | 40,0 | 170 | 37,5 | 12,5 | 12,5 | SN..190612 | 512.083 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3879357 | PSSNL4040S19 | 40 | 40 | 50,0 | 250 | 37,5 | 12,5 | 12,5 | SN..190612 | 512.083 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3879711 | PSSNL4040S25 | 40 | 40 | 50,0 | 250 | 50,0 | 16,0 | 16,0 | SN..250724 | 512.092 | 513.038 | 515.028 | 511.038 | 514.138 | 30 IP |
