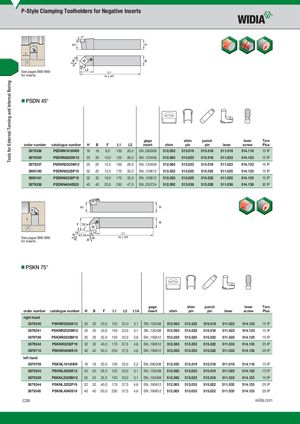

See pages B68–B80 for inserts.
- PSDN 45°
gage shim punch lever Torx
| order number | catalogue number | H | B | F | L1 | L2 | insert | shim | pin | pin | lever | screw | Plus |
| 3879336 | PSDNN1616H09 | 16 | 16 | 8,0 | 100 | 20,0 | SN..090308 | 512.053 | 513.019 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879335 | PSDNN2020K12 | 20 | 20 | 10,0 | 125 | 26,0 | SN..120408 | 512.063 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879337 | PSDNN2525M12 | 25 | 25 | 12,5 | 150 | 26,0 | SN..120408 | 512.063 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3900160 | PSDNN3225P15 | 32 | 25 | 12,5 | 170 | 33,0 | SN..150612 | 512.025 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3900161 | PSDNN3232P15 | 32 | 32 | 16,0 | 170 | 33,0 | SN..150612 | 512.025 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3879338 | PSDNN4040S25 | 40 | 40 | 20,0 | 250 | 47,0 | SN..250724 | 512.092 | 513.038 | 515.028 | 511.038 | 514.138 | 30 IP |
See pages B68–B80 for inserts.
- PSKN 75°
gage shim punch lever Torx
order number catalogue number H B F L1 L2 L1A insert shim pin pin lever screw Plus
right hand
| order number | catalogue number | H | B | F | L1 | L2 | L1A | gage insert | shim | shim pin | punch pin | lever | lever screw | Torx Plus |
| right hand | ||||||||||||||
| 3879340 | PSKNR2020K12 | 20 | 20 | 25,0 | 125 | 23,0 | 3,1 | SN..120408 | 512.063 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879341 | PSKNR2525M12 | 25 | 25 | 32,0 | 150 | 23,0 | 3,1 | SN..120408 | 512.063 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879708 | PSKNR2525M15 | 25 | 25 | 32,0 | 150 | 32,0 | 3,8 | SN..150612 | 512.025 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3879342 | PSKNR3232P19 | 32 | 32 | 40,0 | 170 | 37,5 | 4,6 | SN..190612 | 512.083 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3879710 | PSKNR4040S19 | 40 | 40 | 50,0 | 250 | 37,5 | 4,6 | SN..190612 | 512.083 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| left hand | ||||||||||||||
| 3879709 | PSKNL1616H09 | 16 | 16 | 20,0 | 100 | 20,0 | 2,2 | SN..090308 | 512.053 | 513.019 | 515.018 | 511.018 | 514.118 | 10 IP |
| 3879343 | PSKNL2020K12 | 20 | 20 | 25,0 | 125 | 23,0 | 3,1 | SN..120408 | 512.063 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879339 | PSKNL2525M12 | 25 | 25 | 32,0 | 150 | 23,0 | 3,1 | SN..120408 | 512.063 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879344 | PSKNL3232P19 | 32 | 32 | 40,0 | 170 | 37,5 | 4,6 | SN..190612 | 512.083 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3879345 | PSKNL4040S19 | 40 | 40 | 50,0 | 250 | 37,5 | 4,6 | SN..190612 | 512.083 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
