See pages B68–B80 for inserts.

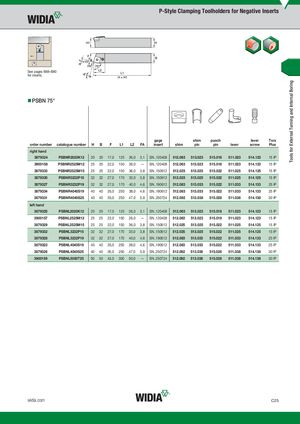

PSBN 75°
| order number | catalogue number | H | B | F | L1 | L2 | FA | gage insert | shim | shim pin | punch pin | lever | lever screw | Torx Plus |
| right hand | ||||||||||||||
| 3879324 | PSBNR2020K12 | 20 | 20 | 17,0 | 125 | 26,0 | 3,1 | SN..120408 | 512.063 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3900158 | PSBNR2525M12 | 25 | 25 | 22,0 | 150 | 26,0 | — | SN..120408 | 512.063 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879333 | PSBNR2525M15 | 25 | 25 | 22,0 | 150 | 36,0 | 3,8 | SN..150612 | 512.025 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3879330 | PSBNR3232P15 | 32 | 32 | 27,0 | 170 | 33,0 | 3,8 | SN..150612 | 512.025 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3879327 | PSBNR3232P19 | 32 | 32 | 27,0 | 170 | 40,0 | 4,6 | SN..190612 | 512.083 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3879334 | PSBNR4040S19 | 40 | 40 | 35,0 | 250 | 38,0 | 4,6 | SN..190612 | 512.083 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3879331 | PSBNR4040S25 | 40 | 40 | 35,0 | 250 | 47,0 | 5,9 | SN..250724 | 512.092 | 513.038 | 515.028 | 511.038 | 514.138 | 30 IP |
| left hand | ||||||||||||||
| 3879325 | PSBNL2020K12 | 20 | 20 | 17,0 | 125 | 26,0 | 3,1 | SN..120408 | 512.063 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3900157 | PSBNL2525M12 | 25 | 25 | 22,0 | 150 | 26,0 | — | SN..120408 | 512.063 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3879329 | PSBNL2525M15 | 25 | 25 | 22,0 | 150 | 36,0 | 3,8 | SN..150612 | 512.025 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3879332 | PSBNL3232P15 | 32 | 32 | 27,0 | 170 | 33,0 | 3,8 | SN..150612 | 512.025 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3879328 | PSBNL3232P19 | 32 | 32 | 27,0 | 170 | 40,0 | 4,6 | SN..190612 | 512.083 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3879323 | PSBNL4040S19 | 40 | 40 | 35,0 | 250 | 38,0 | 4,6 | SN..190612 | 512.083 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3879326 | PSBNL4040S25 | 40 | 40 | 35,0 | 250 | 47,0 | 5,9 | SN..250724 | 512.092 | 513.038 | 515.028 | 511.038 | 514.138 | 30 IP |
| 3900159 | PSBNL5050T25 | 50 | 50 | 43,0 | 300 | 50,0 | — | SN..250724 | 512.092 | 513.038 | 515.028 | 511.038 | 514.138 | 30 IP |
