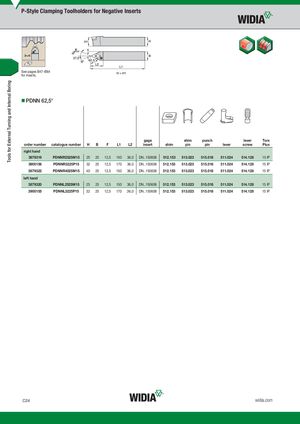

See pages B47–B64 for inserts.
PDNN 62,5°
gage shim punch lever Torx
| order number | catalogue number | H | B | F | L1 | L2 | insert shim | pin | pin | lever | screw | Plus | ||
| right hand | ||||||||||||||
| 3879319 | PDNNR2525M15 | 25 | 25 | 12,5 | 150 | 36,0 | DN..150608 | 512.153 | 513.023 | 515.018 | 511.024 | 514.128 | 15 IP | |
| 3900156 | PDNNR3225P15 | 32 | 25 | 12,5 | 170 | 36,0 | DN..150608 | 512.153 | 513.023 | 515.018 | 511.024 | 514.128 | 15 IP | |
| 3879322 | PDNNR4025M15 | 40 | 25 | 12,5 | 150 | 36,0 | DN..150608 | 512.153 | 513.023 | 515.018 | 511.024 | 514.128 | 15 IP | |
| left hand | ||||||||||||||
| 3879320 | PDNNL2525M15 | 25 | 25 | 12,5 | 150 | 36,0 | DN..150608 | 512.153 | 513.023 | 515.018 | 511.024 | 514.128 | 15 IP | |
| 3900155 | PDNNL3225P15 | 32 | 25 | 12,5 | 170 | 36,0 | DN..150608 | 512.153 | 513.023 | 515.018 | 511.024 | 514.128 | 15 IP |
