See pages B30–B46 for inserts.

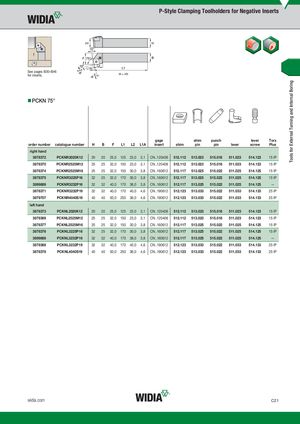

PCKN 75°
| order number | catalogue number | H | B | F | L1 | L2 | L1A | gage insert | shim | shim pin | punch pin | lever | lever screw | Torx Plus |
| right hand | ||||||||||||||
| 3878372 | PCKNR2020K12 | 20 | 20 | 25,0 | 125 | 23,0 | 3,1 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878370 | PCKNR2525M12 | 25 | 25 | 32,0 | 150 | 23,0 | 3,1 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878374 | PCKNR2525M16 | 25 | 25 | 32,0 | 150 | 30,0 | 3,8 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878375 | PCKNR3225P16 | 32 | 25 | 32,0 | 170 | 30,0 | 3,8 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3899889 | PCKNR3232P16 | 32 | 32 | 40,0 | 170 | 38,0 | 3,8 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | — |
| 3878371 | PCKNR3232P19 | 32 | 32 | 40,0 | 170 | 40,0 | 4,6 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3879707 | PCKNR4040S19 | 40 | 40 | 50,0 | 250 | 36,0 | 4,6 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| left hand | ||||||||||||||
| 3878373 | PCKNL2020K12 | 20 | 20 | 25,0 | 125 | 23,0 | 3,1 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878369 | PCKNL2525M12 | 25 | 25 | 32,0 | 150 | 23,0 | 3,1 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878377 | PCKNL2525M16 | 25 | 25 | 32,0 | 150 | 30,0 | 3,8 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878376 | PCKNL3225P16 | 32 | 25 | 32,0 | 170 | 30,0 | 3,8 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3899888 | PCKNL3232P16 | 32 | 32 | 40,0 | 170 | 38,0 | 3,8 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | — |
| 3878368 | PCKNL3232P19 | 32 | 32 | 40,0 | 170 | 40,0 | 4,6 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3878378 | PCKNL4040S19 | 40 | 40 | 50,0 | 250 | 36,0 | 4,6 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
