See pages B30–B46 for inserts.

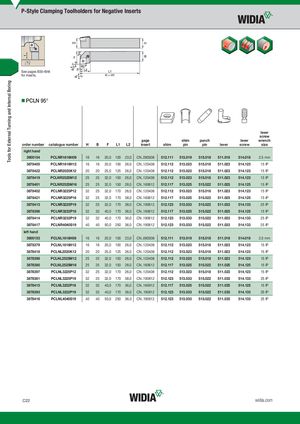

PCLN 95°
| order number | catalogue number | H | B | F | L1 | L2 | gage insert | shim | shim pin | punch pin | lever | lever screw | lever screw wrench size |
| right hand | |||||||||||||
| 3900154 | PCLNR1616H09 | 16 | 16 | 20,0 | 100 | 23,0 | CN..090308 | 512.111 | 513.019 | 515.018 | 511.018 | 514.018 | 2.5 mm |
| 3878400 | PCLNR1616H12 | 16 | 16 | 20,0 | 100 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878422 | PCLNR2020K12 | 20 | 20 | 25,0 | 125 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878419 | PCLNR2525M12 | 25 | 25 | 32,0 | 150 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878401 | PCLNR2525M16 | 25 | 25 | 32,0 | 150 | 28,0 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878402 | PCLNR3225P12 | 32 | 25 | 32,0 | 170 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878421 | PCLNR3225P16 | 32 | 25 | 32,0 | 170 | 38,0 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878413 | PCLNR3225P19 | 32 | 25 | 32,0 | 170 | 38,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3878396 | PCLNR3232P16 | 32 | 32 | 40,0 | 170 | 36,0 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878414 | PCLNR3232P19 | 32 | 32 | 40,0 | 170 | 36,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3878417 | PCLNR4040S19 | 40 | 40 | 50,0 | 250 | 36,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| left hand | |||||||||||||
| 3900153 | PCLNL1616H09 | 16 | 16 | 20,0 | 100 | 23,0 | CN..090308 | 512.111 | 513.019 | 515.018 | 511.018 | 514.018 | 2.5 mm |
| 3878379 | PCLNL1616H12 | 16 | 16 | 20,0 | 100 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878418 | PCLNL2020K12 | 20 | 20 | 25,0 | 125 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878398 | PCLNL2525M12 | 25 | 25 | 32,0 | 150 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878380 | PCLNL2525M16 | 25 | 25 | 32,0 | 150 | 28,0 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878397 | PCLNL3225P12 | 32 | 25 | 32,0 | 170 | 26,0 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878381 | PCLNL3225P19 | 32 | 25 | 32,0 | 170 | 38,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3878415 | PCLNL3232P16 | 32 | 32 | 40,0 | 170 | 36,0 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878393 | PCLNL3232P19 | 32 | 32 | 40,0 | 170 | 36,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3878416 | PCLNL4040S19 | 40 | 40 | 50,0 | 250 | 36,0 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
