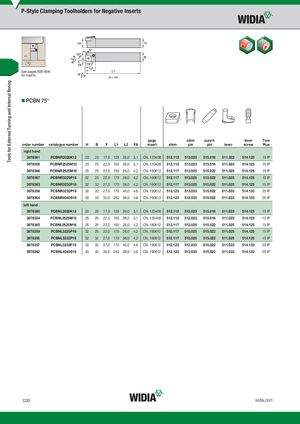

Общий каталог Widia 2017 - страница 260
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B30–B46 for inserts.
PCBN 75°
| order number | catalogue number | H | B | F | L1 | L2 | FA | gage insert | shim | shim pin | punch pin | lever | lever screw | Torx Plus |
| right hand | ||||||||||||||
| 3878361 | PCBNR2020K12 | 20 | 20 | 17,0 | 125 | 26,0 | 3,1 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878356 | PCBNR2525M12 | 25 | 25 | 22,0 | 150 | 26,0 | 3,1 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878366 | PCBNR2525M16 | 25 | 25 | 22,0 | 150 | 26,0 | 4,2 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878367 | PCBNR3225P16 | 32 | 25 | 22,0 | 170 | 28,0 | 4,2 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878363 | PCBNR3232P16 | 32 | 32 | 27,0 | 170 | 38,0 | 4,2 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878358 | PCBNR3232P19 | 32 | 32 | 27,0 | 170 | 40,0 | 4,6 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3878364 | PCBNR4040S19 | 40 | 40 | 35,0 | 250 | 38,0 | 4,6 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| left hand | ||||||||||||||
| 3878360 | PCBNL2020K12 | 20 | 20 | 17,0 | 125 | 26,0 | 3,1 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878354 | PCBNL2525M12 | 25 | 25 | 22,0 | 150 | 26,0 | 3,1 | CN..120408 | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878365 | PCBNL2525M16 | 25 | 25 | 22,0 | 150 | 26,0 | 4,2 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878359 | PCBNL3225P16 | 32 | 25 | 22,0 | 170 | 28,0 | 4,2 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878355 | PCBNL3232P16 | 32 | 32 | 27,0 | 170 | 38,0 | 4,2 | CN..160612 | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878357 | PCBNL3232P19 | 32 | 32 | 27,0 | 170 | 40,0 | 4,6 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3878362 | PCBNL4040S19 | 40 | 40 | 35,0 | 250 | 38,0 | 4,6 | CN..190612 | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
