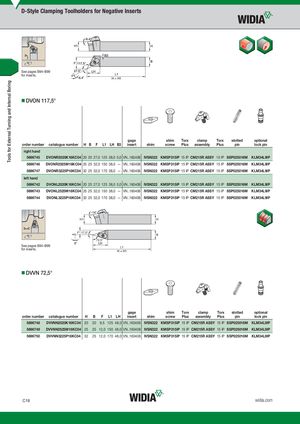

See pages B94–B99 for inserts.
- DVON 117,5°
| gage | shim | Torx | clamp | Torx | slotted | optional | |||||
| order number | catalogue number | H B | L1 LH B3 F insert | shim | screw | Plus | assembly | Plus | pin | lock pin | |
| right hand | |||||||||||
| 5696745 | DVONR2020K16KC04 20 20 27,0 125 38,0 5,0 VN..160408 | IVSN322 KMSP315IP 15 IP CM215R ASSY 15 IP | SSP025016M | KLM34L9IP | |||||||
| 5696746 | DVONR2525M16KC04 25 25 32,0 150 38,0 — VN..160408 | IVSN322 KMSP315IP 15 IP CM215R ASSY 15 IP | SSP025016M | KLM34L9IP | |||||||
| 5696747 | DVONR3225P16KC04 32 25 32,0 170 38,0 — VN..160408 | IVSN322 KMSP315IP 15 IP CM215R ASSY 15 IP | SSP025016M | KLM34L9IP | |||||||
| left hand | |||||||||||
| 5696742 | DVONL2020K16KC04 | 20 20 27,0 125 38,0 5,0 VN..160408 | IVSN322 KMSP315IP 15 IP CM215R ASSY 15 IP | SSP025016M | KLM34L9IP | ||||||
| 5696743 | DVONL2525M16KC04 25 25 32,0 150 38,0 — VN..160408 | IVSN322 KMSP315IP 15 IP CM215R ASSY 15 IP | SSP025016M | KLM34L9IP | |||||||
| 5696744 | DVONL3225P16KC04 | 32 25 32,0 170 38,0 — VN..160408 | IVSN322 KMSP315IP 15 IP CM215R ASSY 15 IP | SSP025016M | KLM34L9IP |
See pages B94–B99 for inserts.
H1
F 17,5°
72,5°
H
B
L1
- DVVN 72,5°
| gage | shim | Torx | clamp | Torx | slotted | optional | ||||||||||
| order number | catalogue number | H | B | F | L1 | LH | insert | shim | screw | Plus | assembly | Plus | pin | lock pin | ||
| 5696748 | DVVNN2020K16KC04 | 20 | 20 | 9,5 125 48,0 VN..160408 | IVSN322 KMSP315IP 15 IP CM215R ASSY 15 IP | SSP025016M | KLM34L9IP | |||||||||
| 5696749 | DVVNN2525M16KC04 | 25 | 25 12,0 150 48,0 VN..160408 | IVSN322 KMSP315IP 15 IP CM215R ASSY 15 IP | SSP025016M | KLM34L9IP | ||||||||||
| 5696750 | DVVNN3225P16KC04 | 32 | 25 12,0 170 48,0 VN..160408 | IVSN322 KMSP315IP 15 IP CM215R ASSY 15 IP | SSP025016M | KLM34L9IP |
