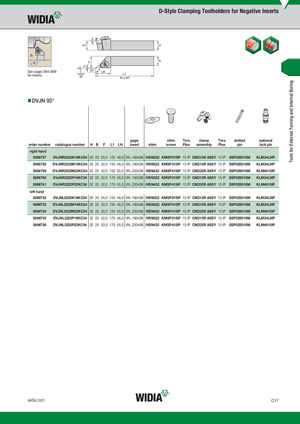

H1 H
B F 3° 93° See pages B94–B99 for inserts. L1
DVJN 93°
| order number | catalogue number | H B F L1 LH | gage insert | shim | shim screw | Torx Plus clamp assembly | Torx Plus | slotted pin | optional lockpin |
| right hand | |||||||||
| 5696737 | DVJNR2020K16KC04 | 20 20 25,0 125 46,0 | VN..160408 | IVSN322 | KMSP315IP | 15 IP CM215R ASSY | 15 IP | SSP025016M | KLM34L9IP |
| 5696738 | DVJNR2525M16KC04 | 25 25 32,0 150 46,0 | VN..160408 | IVSN322 | KMSP315IP | 15 IP CM215R ASSY | 15 IP | SSP025016M | KLM34L9IP |
| 5696739 | DVJNR2525M22KC04 | 25 25 32,0 150 55,0 | VN..220408 | IVSN432 | KMSP415IP | 15 IP CM235R ASSY | 15 IP | SSP025016M | KLM4615IP |
| 5696740 | DVJNR3225P16KC04 | 32 25 32,0 170 46,0 | VN..160408 | IVSN322 | KMSP315IP | 15 IP CM215R ASSY | 15 IP | SSP025016M | KLM34L9IP |
| 5696741 | DVJNR3225P22KC04 | 32 25 32,0 170 55,0 | VN..220408 | IVSN432 | KMSP415IP | 15 IP CM235R ASSY | 15 IP | SSP025016M | KLM4615IP |
| left hand 5696732 | DVJNL2020K16KC04 | 20 20 25,0 125 46,0 | VN..160408 | IVSN322 | KMSP315IP | 15 IP CM215R ASSY | 15 IP | SSP025016M | KLM34L9IP |
| 5696733 | DVJNL2525M16KC04 | 25 25 32,0 150 46,0 | VN..160408 | IVSN322 | KMSP315IP | 15 IP CM215R ASSY | 15 IP | SSP025016M | KLM34L9IP |
| 5696734 | DVJNL2525M22KC04 | 25 25 32,0 150 55,0 | VN..220408 | IVSN432 | KMSP415IP | 15 IP CM235R ASSY | 15 IP | SSP025016M | KLM4615IP |
| 5696735 | DVJNL3225P16KC04 | 32 25 32,0 170 46,0 | VN..160408 | IVSN322 | KMSP315IP | 15 IP CM215R ASSY | 15 IP | SSP025016M | KLM34L9IP |
| 5696736 | DVJNL3225P22KC04 | 32 25 32,0 170 55,0 | VN..220408 | IVSN432 | KMSP415IP | 15 IP CM235R ASSY | 15 IP | SSP025016M | KLM4615IP |
