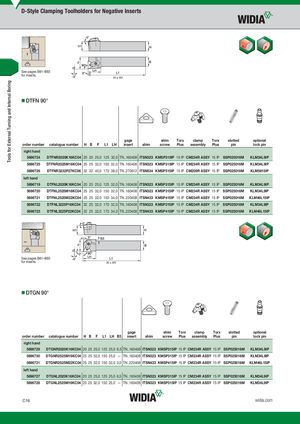

Общий каталог Widia 2017 - страница 256
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B81–B93 for inserts.
- DTFN 90°
| gage | Torx clamp Torx shim | slotted optional | |||
| order number | catalogue number | H B | insert LH L1 F shim | Plus assembly Plus screw | pin lock pin |
| right hand | |||||
| 5696724 | DTFNR2020K16KC04 | 20 20 25,0 125 32,0 TN..160408 | ITSN323 KMSP315IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM34L9IP |
| 5696725 | DTFNR2525M16KC04 25 25 32,0 150 32,0 TN..160408 | ITSN323 KMSP315IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM34L9IP | |
| 5696726 | DTFNR3232P27KC06 | 32 32 40,0 170 38,0 TN..270612 | ITSN534 KMSP515IP 15 IP CM209R ASSY 15 IP | SSP025016M | KLM5815IP |
| left hand | |||||
| 5696719 | DTFNL2020K16KC04 | 20 20 25,0 125 32,0 TN..160408 | ITSN323 KMSP315IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM34L9IP |
| 5696720 | DTFNL2525M16KC04 | 25 25 32,0 150 32,0 TN..160408 | ITSN323 KMSP315IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM34L9IP |
| 5696721 | DTFNL2525M22KC04 | 25 25 32,0 150 34,0 TN..220408 | ITSN433 KMSP415IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM46L15IP |
| 5696722 | DTFNL3225P16KC04 | 32 25 32,0 170 32,0 TN..160408 | ITSN323 KMSP315IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM34L9IP |
| 5696723 | DTFNL3225P22KC04 | 32 25 32,0 170 34,0 TN..220408 | ITSN433 KMSP415IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM46L15IP |
See pages B81–B93 for inserts.
- DTGN 90°
| gage | shim | Torx | clamp | Torx | slotted | optional | ||||
| order number | catalogue number | H B | L1 LH B3 F insert | shim screw | Plus | assembly | Plus | pin | lock pin | |
| right hand | ||||||||||
| 5696729 | DTGNR2020K16KC04 20 20 25,0 125 25,0 6,5 TN..160408 ITSN323 KMSP315IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM34L9IP | |||||||
| 5696730 | DTGNR2525M16KC04 25 25 32,0 150 25,0 — TN..160408 ITSN323 KMSP315IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM34L9IP | |||||||
| 5696731 | DTGNR2525M22KC04 25 25 32,0 150 32,0 3,0 TN..220408 ITSN433 KMSP415IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM46L15IP | |||||||
| left hand | ||||||||||
| 5696727 | DTGNL2020K16KC04 | 20 20 25,0 125 25,0 6,5 TN..160408 ITSN323 KMSP315IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM34L9IP | ||||||
| 5696728 | DTGNL2525M16KC04 25 25 32,0 150 25,0 — TN..160408 ITSN323 KMSP315IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM34L9IP |
