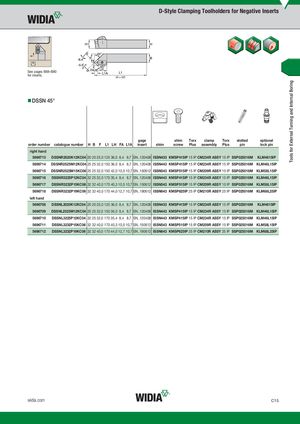

Общий каталог Widia 2017 - страница 255
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B68–B80 for inserts.
DSSN 45°
| gage | shim | Torx | clamp | Torx | slotted | optional | ||||||
| order number | catalogue number | H B | F | L1 LH FA L1A | insert | shim | screw | Plus | assembly | Plus | pin | lock pin |
right hand
| 5696713 | DSSNR2020K12KC04 20 20 25,0 125 36,0 8,4 8,7 SN..120408 | ISSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM4615IP |
| 5696714 | DSSNR2525M12KC04 25 25 32,0 150 36,0 8,4 8,7 SN..120408 | ISSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM46L15IP |
| 5696715 | DSSNR2525M15KC06 25 25 32,0 150 42,0 10,5 10,7 SN..150612 | ISSN543 KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M | KLM58L15IP |
| 5696716 | DSSNR3225P12KC04 32 25 32,0 170 35,4 8,4 8,7 SN..120408 | ISSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM46L15IP |
| 5696717 | DSSNR3232P15KC06 32 32 40,0 170 40,3 10,5 10,7 SN..150612 | ISSN543 KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M | KLM58L15IP |
| 5696718 | DSSNR3232P19KC06 32 32 40,0 170 44,0 12,7 10,7 SN..190612 | ISSN643 KMSP625IP 25 IP CM210R ASSY 25 IP SSP025016M | KLM68L25IP |
left hand
| 5696708 | DSSNL2020K12KC04 20 20 25,0 125 36,0 8,4 8,7 SN..120408 | ISSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM4615IP |
| 5696709 | DSSNL2525M12KC04 25 25 32,0 150 36,0 8,4 8,7 SN..120408 | ISSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM46L15IP |
| 5696710 | DSSNL3225P12KC04 32 25 32,0 170 35,4 8,4 8,7 SN..120408 | ISSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM46L15IP |
| 5696711 | DSSNL3232P15KC06 32 32 40,0 170 40,3 10,5 10,7 SN..150612 | ISSN543 KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M | KLM58L15IP |
| 5696712 | DSSNL3232P19KC06 32 32 40,0 170 44,0 12,7 10,7 SN..190612 | ISSN643 KMSP625IP 25 IP CM210R ASSY 25 IP SSP025016M | KLM68L25IP |
