See pages B68–B80 for inserts.

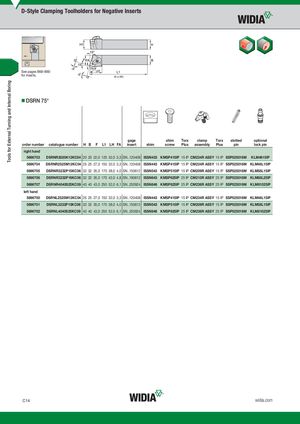

DSRN 75°
| gage | shim | Torx | clamp | Torx | slotted | optional | ||||||
| order number | catalogue number | H B | F | L1 LH FA | insert | shim | screw | Plus | assembly | Plus | pin | lock pin |
right hand
| 5696703 | DSRNR2020K12KC04 | 20 20 22,0 125 32,0 3,3 SN..120408 | ISSN433 KMSP415IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM4615IP |
| 5696704 | DSRNR2525M12KC04 25 25 27,0 150 32,0 3,3 SN..120408 | ISSN443 KMSP415IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM46L15IP | |
| 5696705 | DSRNR3232P15KC06 32 32 35,0 170 38,0 4,0 SN..150612 | ISSN543 KMSP515IP 15 IP CM209R ASSY 15 IP | SSP025016M | KLM58L15IP | |
| 5696706 | DSRNR3232P19KC06 32 32 35,0 170 42,0 4,8 SN..190612 | ISSN643 KMSP625IP 25 IP CM210R ASSY 25 IP | SSP025016M | KLM68L25IP | |
| 5696707 | DSRNR4040S25KC09 40 40 43,0 250 52,0 6,1 SN..250924 | ISSN846 KMSP825IP 25 IP CM236R ASSY 25 IP | SSP025018M | KLM81025IP |
left hand
| 5696700 | DSRNL2525M12KC04 25 25 27,0 150 32,0 3,3 SN..120408 | ISSN443 KMSP415IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM46L15IP | |
| 5696701 | DSRNL3232P15KC06 | 32 32 35,0 170 38,0 4,0 SN..150612 | ISSN543 KMSP515IP 15 IP CM209R ASSY 15 IP | SSP025016M | KLM58L15IP |
| 5696702 | DSRNL4040S25KC09 | 40 40 43,0 250 52,0 6,1 SN..250924 | ISSN846 KMSP825IP 25 IP CM236R ASSY 25 IP | SSP025018M | KLM81025IP |
