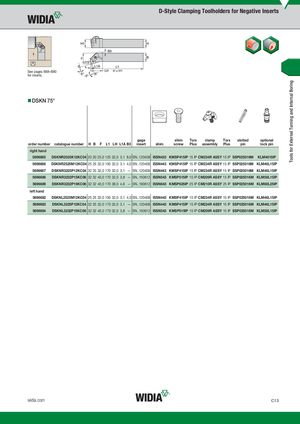

DSKN 75°
| gage | shim | Torx | clamp | Torx | slotted | optional | ||||||
| order number | catalogue number | H B | F | L1 LH L1A B3 | insert | shim | screw | Plus | assembly | Plus | pin | lock pin |
right hand
| 5696685 | DSKNR2020K12KC04 20 20 25,0 125 32,0 3,1 8,0 SN..120408 | ISSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM4615IP |
| 5696686 | DSKNR2525M12KC04 25 25 32,0 150 32,0 3,1 4,0 SN..120408 | ISSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP | |
| 5696687 | DSKNR3225P12KC04 32 25 32,0 170 32,0 3,1 — SN..120408 | ISSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP | |
| 5696688 | DSKNR3232P15KC06 32 32 40,0 170 32,0 3,8 — SN..150612 | ISSN543 KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M KLM58L15IP | |
| 5696689 | DSKNR3232P19KC06 32 32 40,0 170 38,0 4,6 — SN..190612 | ISSN643 KMSP625IP 25 IP CM210R ASSY 25 IP SSP025016M KLM68L25IP |
left hand
| 5696682 | DSKNL2525M12KC04 25 25 32,0 150 32,0 3,1 4,0 SN..120408 | ISSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP |
| 5696683 | DSKNL3225P12KC04 32 25 32,0 170 32,0 3,1 — SN..120408 | ISSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP |
| 5696684 | DSKNL3232P15KC06 32 32 40,0 170 32,0 3,8 — SN..150612 | ISSN543 KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M KLM58L15IP |
