See pages B65–B67 for inserts.

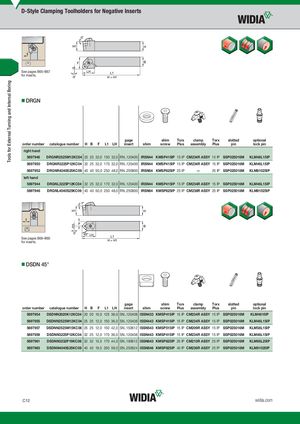

- DRGN
| gage | shim | Torx | clamp | Torx | slotted | optional | |||||||
| order number | catalogue number | H B | F | L1 | LH | insert | shim | screw | Plus | assembly | Plus | pin | lock pin |
right hand
| 5697948 | DRGNR2525M12KC04 | 25 25 32,0 150 32,0 RN..120400 | IRSN44 KMSP415IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM46L15IP | ||
| 5697950 | DRGNR3225P12KC04 | 32 25 32,0 170 32,0 RN..120400 | IRSN44 KMSP415IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM46L15IP | ||
| 5697952 | DRGNR4040S25KC09 | 40 40 50,0 250 48,0 RN..250900 | IRSN84 KMSP825IP 25 IP | — | 25 IP | SSP025018M | KLM81025IP |
left hand
| 5697944 | DRGNL3225P12KC04 | 32 25 32,0 170 32,0 RN..120400 | IRSN44 KMSP415IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM46L15IP |
| 5697946 | DRGNL4040S25KC09 | 40 40 50,0 250 48,0 RN..250900 | IRSN84 KMSP825IP 25 IP CM236R ASSY 25 IP | SSP025018M | KLM81025IP |
See pages B68–B80 for inserts.
- DSDN 45°
| gage | shim | Torx | clamp | Torx | slotted | optional | |||||
| order number | catalogue number | H B | LH L1 F insert | shim | screw | Plus | assembly | Plus | pin | lock pin | |
| 5697954 | DSDNN2020K12KC04 | 20 20 10,0 125 36,0 SN..120408 | ISSN433 KMSP415IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM4615IP | ||||||
| 5697955 | DSDNN2525M12KC04 25 25 12,0 150 36,0 SN..120408 | ISSN443 KMSP415IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM46L15IP | |||||||
| 5697957 | DSDNN2525M15KC06 25 25 12,0 150 42,0 SN..150612 | ISSN543 KMSP515IP 15 IP CM209R ASSY 15 IP | SSP025016M | KLM58L15IP | |||||||
| 5697959 | DSDNN3225P12KC04 | 32 25 12,0 170 36,0 SN..120408 | ISSN443 KMSP415IP 15 IP CM234R ASSY 15 IP | SSP025016M | KLM46L15IP | ||||||
| 5697961 | DSDNN3232P19KC06 | 32 32 15,5 170 44,0 SN..190612 | ISSN643 KMSP625IP 25 IP CM210R ASSY 25 IP | SSP025016M | KLM68L25IP | ||||||
| 5697963 | DSDNN4040S25KC09 | 40 40 19,5 250 59,0 SN..250924 | ISSN846 KMSP825IP 40 IP CM236R ASSY 25 IP | SSP025018M | KLM81025IP |
