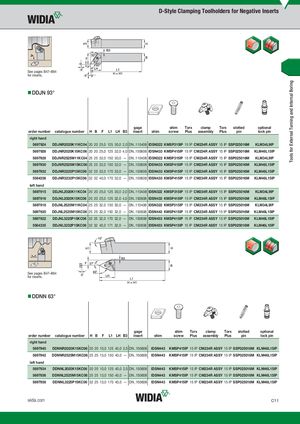

Общий каталог Widia 2017 - страница 251
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B47–B64 for inserts.
- DDJN 93°
| gage | shim | Torx | clamp | Torx | slotted | optional | ||||||
| order number | catalogue number | H B | F | L1 LH B3 | insert | shim | screw | Plus | assembly | Plus | pin | lock pin |
right hand
| 5697924 | DDJNR2020K11KC04 20 20 25,0 125 30,0 2,0 DN..110408 IDSN322 KMSP315IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM34L9IP |
| 5697926 | DDJNR2020K15KC06 20 20 25,0 125 32,0 4,0 DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM46L15IP |
| 5697928 | DDJNR2525M11KC04 25 25 32,0 150 30,0 — DN..110408 IDSN322 KMSP315IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM34L9IP |
| 5697930 | DDJNR2525M15KC06 25 25 32,0 150 32,0 — DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM46L15IP |
| 5697932 | DDJNR3225P15KC06 32 25 32,0 170 32,0 — DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM46L15IP |
| 5564336 | DDJNR3232P15KC06 32 32 40,0 170 32,0 — DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM46L15IP |
left hand
| 5697915 | DDJNL2020K11KC04 | 20 20 25,0 125 30,0 2,0 DN..110408 IDSN322 KMSP315IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM34L9IP |
| 5697916 | DDJNL2020K15KC06 | 20 20 25,0 125 32,0 4,0 DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM46L15IP |
| 5697918 | DDJNL2525M11KC04 25 25 32,0 150 30,0 — DN..110408 IDSN322 KMSP315IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM34L9IP | |
| 5697920 | DDJNL2525M15KC06 25 25 32,0 150 32,0 — DN..150608 IDSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM46L15IP | |
| 5697922 | DDJNL3225P15KC06 | 32 25 32,0 170 32,0 — DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM46L15IP |
| 5564335 | DDJNL3232P15KC06 | 32 32 40,0 171 32,0 — DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM46L15IP |
See pages B47–B64 for inserts.
- DDNN 63°
| gage | shim | Torx | clamp | Torx | slotted | optional | ||||||
| order number | catalogue number | H B | F | L1 LH B3 | insert | shim | screw | Plus | assembly | Plus | pin | lock pin |
right hand
| 5697940 | DDNNR2020K15KC06 20 20 10,0 125 40,0 2,5 DN..150608 | IDSN443 | KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP |
| 5697942 | DDNNR2525M15KC06 25 25 13,0 150 40,0 — DN..150608 | IDSN443 | KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP |
left hand
| 5697934 | DDNNL2020K15KC06 | 20 20 10,0 125 40,0 2,5 DN..150608 | IDSN443 | KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP |
| 5697936 | DDNNL2525M15KC06 25 25 13,0 150 40,0 — DN..150608 | IDSN443 | KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP | |
| 5697938 | DDNNL3225P15KC06 32 25 13,0 170 40,0 — DN..150608 | IDSN443 | KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP |
