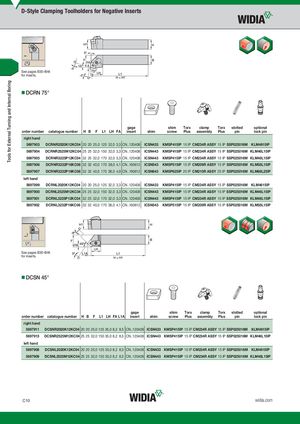

See pages B30–B46 for inserts.
- DCRN 75°
| gage | shim | Torx | clamp | Torx | slotted | optional | ||||||
| order number | catalogue number | H B | F | L1 LH FA | insert | shim | screw | Plus | assembly | Plus | pin | lock pin |
right hand
| 5697903 | DCRNR2020K12KC04 20 20 25,0 125 32,0 3,3 CN..120408 | ICSN433 | KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM4615IP |
| 5697904 | DCRNR2525M12KC04 25 25 32,0 150 32,0 3,3 CN..120408 | ICSN443 | KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP | |
| 5697905 | DCRNR3225P12KC04 32 25 32,0 170 32,0 3,3 CN..120408 | ICSN443 | KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP | |
| 5697906 | DCRNR3232P16KC06 32 32 40,0 170 38,0 4,1 CN..160612 | ICSN543 | KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M KLM58L15IP | |
| 5697907 | DCRNR3232P19KC06 32 32 40,0 170 38,0 4,9 CN..190612 | ICSN643 | KMSP625IP 25 IP CM210R ASSY 25 IP SSP025016M KLM68L25IP |
left hand
| 5697899 | DCRNL2020K12KC04 | 20 20 25,0 125 32,0 3,3 CN..120408 | ICSN433 | KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM4615IP |
| 5697900 | DCRNL2525M12KC04 25 25 32,0 150 32,0 3,3 CN..120408 | ICSN443 | KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP | ||
| 5697901 | DCRNL3225P12KC04 | 32 25 32,0 170 32,0 3,3 CN..120408 | ICSN443 | KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP | |
| 5697902 | DCRNL3232P16KC06 | 32 32 40,0 170 38,0 4,1 CN..160612 | ICSN543 | KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M KLM58L15IP |
See pages B30–B46 for inserts.
- DCSN 45°
| gage | shim | Torx | clamp | Torx | slotted | optional | ||||||
| order number | catalogue number | H B | F | L1 LH FA L1A | insert | shim | screw | Plus | assembly | Plus | pin | lock pin |
right hand
| 5697911 | DCSNR2020K12KC04 20 20 25,0 125 35,0 8,2 8,5 CN..120408 | ICSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM4615IP |
| 5697913 | DCSNR2525M12KC04 25 25 32,0 150 35,0 8,2 8,5 CN..120408 | ICSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP |
left hand
| 5697908 | DCSNL2020K12KC04 20 20 25,0 125 35,0 8,2 8,5 CN..120408 | ICSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM4615IP |
| 5697909 | DCSNL2525M12KC04 25 25 32,0 150 35,0 8,2 8,5 CN..120408 | ICSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP |
