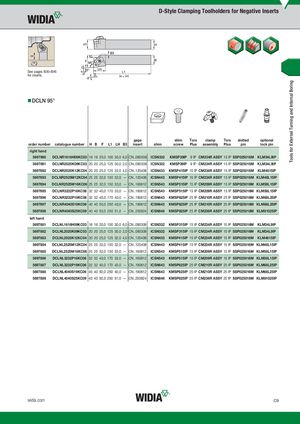

Общий каталог Widia 2017 - страница 249
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B30–B46 for inserts.
DCLN 95°
| gage | shim | Torx | clamp | Torx | slotted | optional | ||||||
| order number | catalogue number | H B | F | L1 LH B3 | insert | shim | screw | Plus | assembly | Plus | pin | lock pin |
right hand
| 5697890 | DCLNR1616H09KC03 16 16 20,0 100 30,0 6,0 CN..090308 | ICSN332 | KMSP39IP | 9 IP | CM234R ASSY 15 IP SSP025016M | KLM34L9IP |
| 5697891 | DCLNR2020K09KC03 20 20 25,0 125 30,0 2,0 CN..090308 | ICSN332 | KMSP39IP | 9 IP | CM234R ASSY 15 IP SSP025016M | KLM34L9IP |
| 5697892 | DCLNR2020K12KC04 20 20 25,0 125 32,0 4,0 CN..120408 | ICSN433 | KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM4615IP | ||
| 5697893 | DCLNR2525M12KC04 25 25 32,0 150 32,0 — CN..120408 | ICSN443 | KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP | |||
| 5697894 | DCLNR2525M16KC06 25 25 32,0 150 33,0 — CN..160612 | ICSN543 | KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M KLM58L15IP | |||
| 5697895 | DCLNR3232P16KC06 32 32 40,0 170 33,0 — CN..160612 | ICSN543 | KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M KLM58L15IP | |||
| 5697896 | DCLNR3232P19KC06 32 32 40,0 170 40,0 — CN..190612 | ICSN643 | KMSP625IP 25 IP CM210R ASSY 25 IP SSP025016M KLM68L25IP | |||
| 5697897 | DCLNR4040S19KC06 40 40 50,0 250 40,0 — CN..190612 | ICSN643 | KMSP625IP 25 IP CM210R ASSY 25 IP SSP025016M KLM68L25IP | |||
| 5697898 | DCLNR4040S25KC09 40 40 50,0 250 51,0 — CN..250924 | ICSN846 | KMSP825IP 25 IP CM236R ASSY 25 IP SSP025018M KLM81025IP |
left hand
| 5697881 | DCLNL1616H09KC03 16 16 20,0 100 30,0 6,0 CN..090308 | ICSN332 | KMSP315IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM34L9IP | |
| 5697882 | DCLNL2020K09KC03 20 20 25,0 125 30,0 2,0 CN..090308 | ICSN332 | KMSP315IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM34L9IP | |
| 5697883 | DCLNL2020K12KC04 20 20 25,0 125 32,0 4,0 CN..120408 | ICSN433 | KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM4615IP | |
| 5697884 | DCLNL2525M12KC04 25 25 32,0 150 32,0 — CN..120408 | ICSN443 | KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP | ||
| 5697885 | DCLNL2525M16KC06 25 25 32,0 150 33,0 — CN..160612 | ICSN543 | KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M KLM58L15IP | ||
| 5697886 | DCLNL3232P16KC06 | 32 32 40,0 170 33,0 — CN..160612 | ICSN543 | KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M KLM58L15IP | |
| 5697887 | DCLNL3232P19KC06 | 32 32 40,0 170 40,0 — CN..190612 | ICSN643 | KMSP625IP 25 IP CM210R ASSY 25 IP SSP025016M KLM68L25IP | |
| 5697888 | DCLNL4040S19KC06 | 40 40 50,0 250 40,0 — CN..190612 | ICSN643 | KMSP625IP 25 IP CM210R ASSY 25 IP SSP025016M KLM68L25IP | |
| 5697889 | DCLNL4040S25KC09 | 40 40 50,0 250 51,0 — CN..250924 | ICSN846 | KMSP825IP 25 IP CM236R ASSY 25 IP SSP025018M KLM81025IP |
