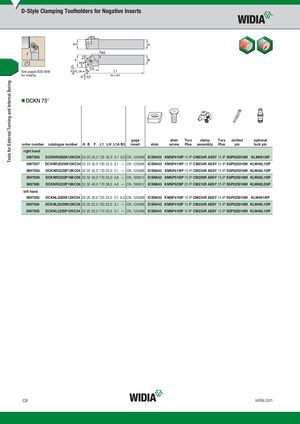

See pages B30–B46 for inserts.
DCKN 75°
| gage | shim | Torx | clamp | Torx | slotted | optional | ||||||
| order number | catalogue number | H B | F | L1 LH L1A B3 | insert | shim | screw | Plus | assembly | Plus | pin | lock pin |
right hand
| 5697856 | DCKNR2020K12KC04 20 20 25,0 125 32,0 3,1 6,0 CN..120408 | ICSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM4615IP |
| 5697857 | DCKNR2525M12KC04 25 25 32,0 150 32,0 3,1 — CN..120408 | ICSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP | |
| 5697858 | DCKNR3225P12KC04 32 25 32,0 170 32,0 3,1 — CN..120408 | ICSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP | |
| 5697859 | DCKNR3232P16KC06 32 32 40,0 170 32,0 3,8 — CN..160612 | ICSN543 KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M KLM58L15IP | |
| 5697880 | DCKNR3232P19KC06 32 32 40,0 170 38,0 4,6 — CN..190612 | ICSN643 KMSP625IP 25 IP CM210R ASSY 25 IP SSP025016M KLM68L25IP |
left hand
| 5697853 | DCKNL2020K12KC04 20 20 25,0 125 32,0 3,1 6,0 CN..120408 | ICSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M | KLM4615IP |
| 5697854 | DCKNL2525M12KC04 25 25 32,0 150 32,0 3,1 — CN..120408 | ICSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP | |
| 5697855 | DCKNL3225P12KC04 32 25 32,0 170 32,0 3,1 — CN..120408 | ICSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP |
