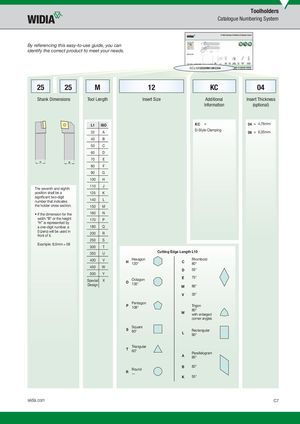

identify the correct product to meet your needs.
DCLNR2525M12KC04
25 25 M 12 KC 04
Shank Dimensions Tool Length Insert Size Additional Insert Thickness
Information (optional)
The seventh and eighth position shall be a signifi cant two-digit number that indicates the holder cross section.
| L1 | ISO |
| 32 | A |
| 40 | B |
| 50 | C |
| 60 | D |
| 70 | E |
| 80 | F |
| 90 | G |
| 100 | H |
| 110 | J |
| 125 | K |
| 140 | L |
| 150 | M |
| 160 | N |
| 170 | P |
| 180 | Q |
| 200 | R |
| 250 | S |
| 300 | T |
| 350 | U |
| 400 | V |
| 450 | W |
| 500 | Y |
| Special | X |
Design
Hexagon H 120°
Octagon O 135°
Pentagon P 108°
Square S 90°
Triangular T 60°
Round R
KC = 04 = 4,76mm
D-Style Clamping 06 = 6,35mm
Cutting Edge Length L10 Rhomboid
| C | 80° |
| D | 55° |
| E | 75° |
| M | 86° |
| V | 35° |
Trigon 80° W with enlarged corner angles
Rectangular L 90°
Parallelogram
| A | 85° |
| B | 82° |
| K | 55° |
